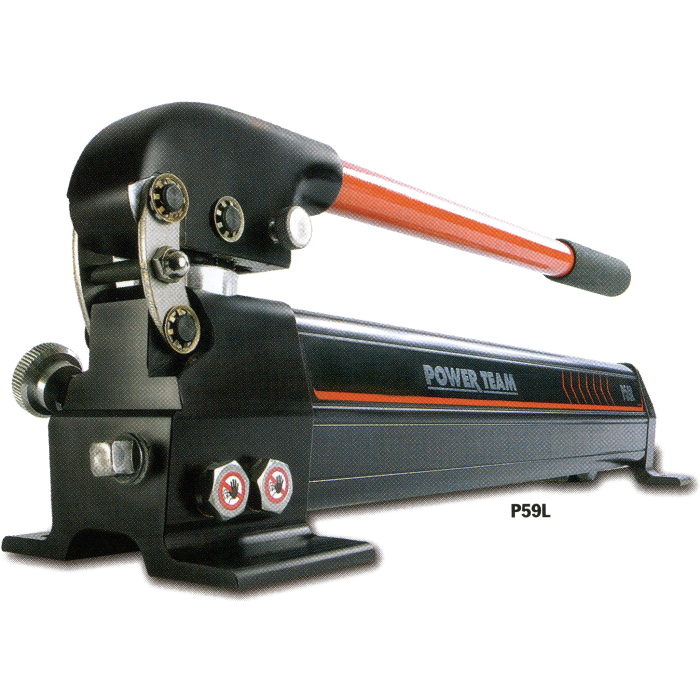

P Series Two-Speed Single Acting Hand Pump, Outlet Port, ci/stroke (LP/HP), Up To 325 / 10,000 PSI (LP/HP)

Dimensions A=5.50 B=14.63 E=13.69 L=4.00	Brand HYDRAULIC TECH USA LLC(SPX)	Brand Hydraulic Tech USA	Pack Size 1.00	UOM EA	For Use With Single Acting Cylinders	Handle Effort 99	Maximum Pressure (psi) LP/HP 325 / 10,000	Alternate Part Numbers Alternate Part Number C1JP95	Supplier Part Number P19	Product Weight 6.60 lbs

Product Questions & Answers 2

Product Questions & Answers

got a single-acting cylinder on a little press. will this hand pump run it, or is it for something else

Question by: Roger H on Oct 26, 2025, 8:38 PM

For single acting cylinders, this pump is a match. It is a two speed, single acting hand pump that automatically shifts into the high pressure stage when it hits the load, with up to 325 PSI in low pressure mode and up to 10,000 PSI in high pressure mode.

Answer by: Customer Support on Oct 27, 2025, 8:54 PM

pump shifts into high pressure on its own, or do you gotta manually switch it over?

Question by: Tammy C on Mar 27, 2026, 8:53 PM

Automatic on this one. Once the pump makes contact with the load, it shifts itself into the high pressure stage without you doing anything. Low pressure gets you there fast, and then it transitions up to handle the actual lifting. No levers to flip or knobs to turn for that part of the operation.

Answer by: Customer Support on Mar 29, 2026, 3:19 PM

Similar Products

Model Number	For Use With	Maximum Pressure (psi) LP/HP	Handle Effort	Dimensions
P19	Single Acting Cylinders	325 / 10,000	99	A=5.50 B=14.63 E=13.69 L=4.00
P19L	Single Acting Cylinders	850 / 10,000	78	A=5.50 E=13.69
P59	Single Acting Cylinders	325 / 10,000	145	A=7.00 B=21.00 E=23.00 L=4.75
P59L	Single Acting Cylinders	850 / 10,000	104	A=7.00 E=21.00
