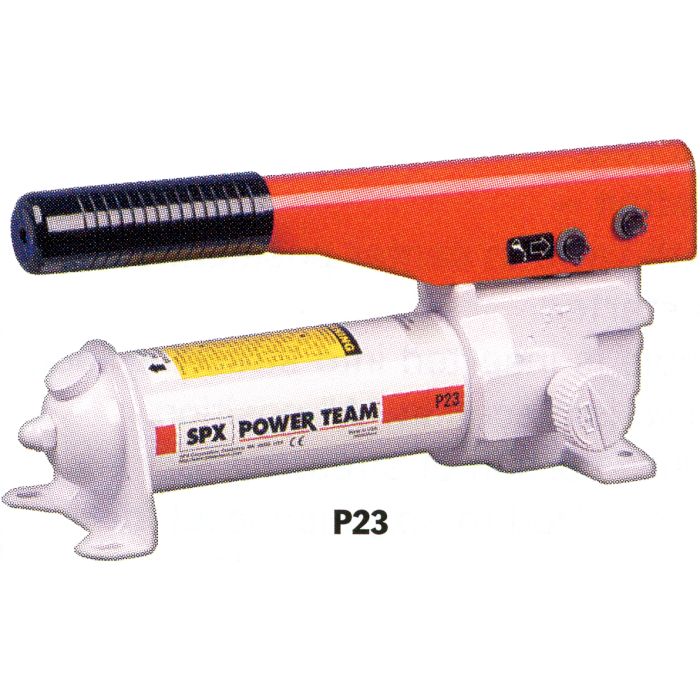

P Series Single-Speed Single-Acting Hand Pumps, Up To 55 cu in Reservoir

Group Description

Best suited for applications where there is little or no free travel.

Features

All metal construction, won't burn through in welding environments • Formed metal handle provides less flex, and reduces operator fatigue • Convenient fill port on P23 and P55 allows pumps to be filled in a horizontal or vertical position • Fill cap seal acts as safety valve preventing over-pressurizing of reservoir • Relief valve inboard of check valve prevents loads from drifting down • Large valve knob gives added control for slowly metering loads down • Standard type hydraulic fluid is included.

Products

Model Number	For Use With	Volume Per Stroke	Maximum Pressure	Handle Effort	Oil Capacity	Outlet Port	Dimensions	Price	Buy Now
P55	Single Acting Cylinders		10000	145			A=6.50 B=21.00 E=23.00 L=4.75
P12	Single Acting Cylinders		10000	75			A=4.00 E=13.50 L=3.38
