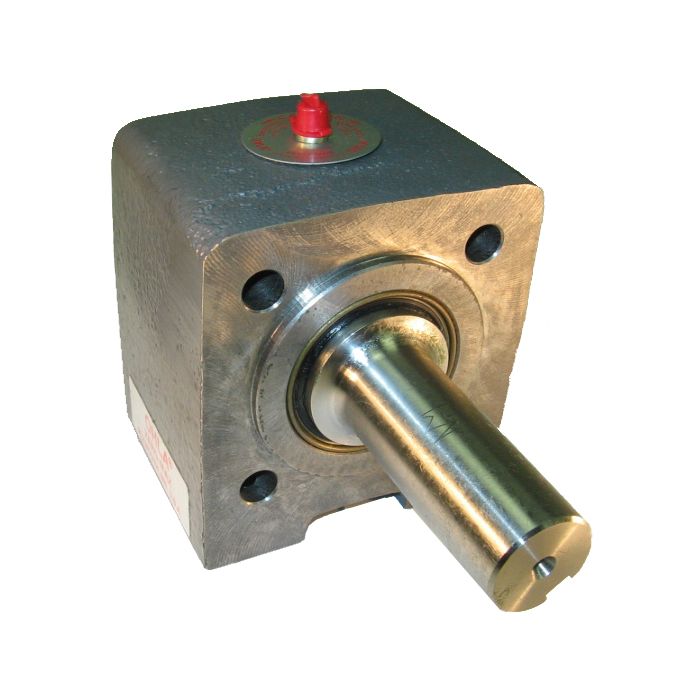

Overhung Load Adapter For Char-Lynn H & S Series 4-Bolt Motors
Bearings |
Deep-grooved ball bearings. |
Input Shafts |
1 inch diameter or smaller. |
Output Shafts |
1 inch male or female, 1-1/2 inch male. |
Performance and Operation |
Estimated Hours Working Life = 1500 x [Cn / (2.378 x Overhung Load)]³ See table for model's Cn number, which varies with RPM. Overhung load is in pounds. Calculation based on overhung load applied at 1-3/8 inches out from housing (see side view). Bearing life will increase significantly if load is positioned closer to unit. |
Products
| Model Number | Input | Output | Lube Qty. | Cn Number | Price | Buy Now |
|---|---|---|---|---|---|---|
| 410-OHLA | 1 in. Straight Keyed with 1/4 x 1/8 Key | 1 in. Straight Keyed with 1/4 x 1/8 Key | 3.38 | 50 RPM: 2500, 100 RPM: 1995, 200 RPM: 1580, 500 RPM: 1175, 1000 RPM: 925, 1800 RPM: 760 |
|
