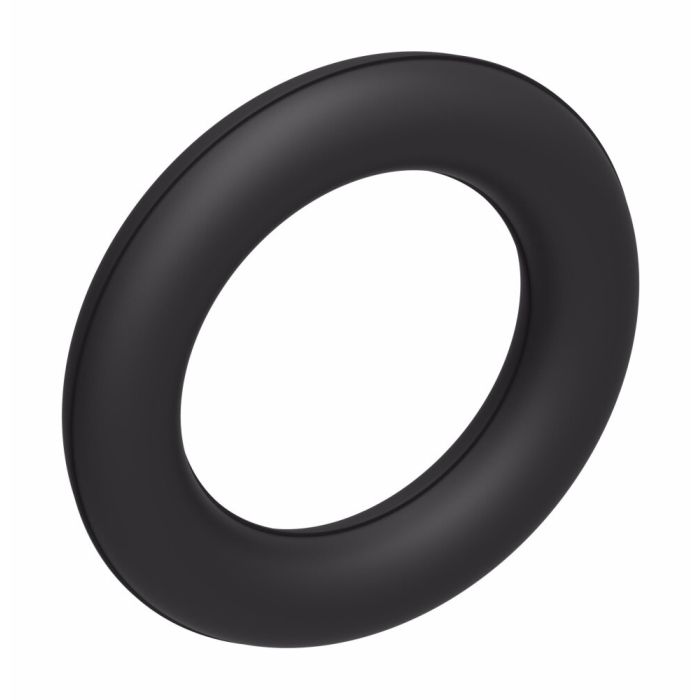

O-Ring for O-Ring Face Seal Fittings & Adapters, 1.25 Inch

Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	I.D. 1.176 in	Materials Buna-N (90 durometer)	O.D. 1.316 in	Supplier Part Number FF9446-25	Temperature Range -40 to +250	Thread Sealant No	Tube Size 1.25	Product Weight 0.01 lbs	Alternate Part Numbers Alternate Part Number C1CV62, Alternate Part Number MI-00445677, Alternate Part Number MINO-00015I02444, Alternate Part Number ORS-20

Product Questions & Answers 4

Product Questions & Answers

Will this fit my 1.25 inch ORFS fitting? I wanna make sure before I order.

Question by: Lynn T on Jun 16, 2025, 7:47 AM

Designed specifically for O-ring face seal (ORFS) fittings and adapters, this O-ring has a 1.25 inch tube size designation, making it a match for your application.

Answer by: Customer Support on Jun 18, 2025, 7:02 AM

got a 1-1/4 inch ORFS fitting that needs a new o-ring, this the right size to grab?

Question by: Hugh M on Mar 10, 2026, 1:52 PM

For a 1.25 inch O-Ring Face Seal fitting, the dimensions here line up correctly. The inside diameter runs 1.176 inches and the outside diameter is 1.316 inches, with a width of 0.07 inches. That matches the standard cross-section for a 1-1/4 inch ORFS application, so you'd be in good shape ordering this one as a replacement.

Answer by: Customer Support on Mar 12, 2026, 6:05 AM

got an ORFS setup with 1-1/4 tube size. is FF9446-25 the right o-ring, or am i gonna be fighting leaks?

Question by: Denise H on May 13, 2025, 5:23 PM

For a 1.25 inch tube size O-Ring Face Seal fitting or adapter, FF9446-25 is the matching seal size. The ring itself is Buna-N at 90 durometer, with a 1.176 inch ID, 1.316 inch OD, and 0.07 inch width, which is what you want for a tight ORFS seal.

Answer by: Customer Support on May 15, 2025, 6:31 AM

What kind of temps can this o-ring handle?

Question by: Wayne M on Apr 29, 2025, 8:48 PM

It's rated for use between -40 and +250 degrees Fahrenheit.

Answer by: Customer Support on May 1, 2025, 6:58 AM

Similar Products

Model Number	Tube Size	Materials	Temperature Range	I.D.	Width (E)	O.D.
FF9446-11	0.25	Buna-N (90 durometer)	-40 to +250	0.301 in	0.07	0.441 in
FF9446-12	0.375	Buna-N (90 durometer)	-40 to +250	0.364 in	0.07	0.504 in
FF9446-14	0.5	Buna-N (90 durometer)	-40 to +250	0.489 in	0.07	0.629 in
FF9446-16	0.63	Buna-N (90 durometer)	-40 to +250	0.614 in	0.07	0.754 in
FF9446-18	0.75	Buna-N (90 durometer)	-40 to +250	0.739 in	0.07	0.879 in
FF9446-21	1	Buna-N (90 durometer)	-40 to +250	0.926 in	0.07	1.066 in
FF9446-25	1.25	Buna-N (90 durometer)	-40 to +250	1.176 in	0.07	1.316 in
22546-11	0.25	Neoprene (72 durometer)	-65 to +300	0.301 in	0.07	0.441 in
