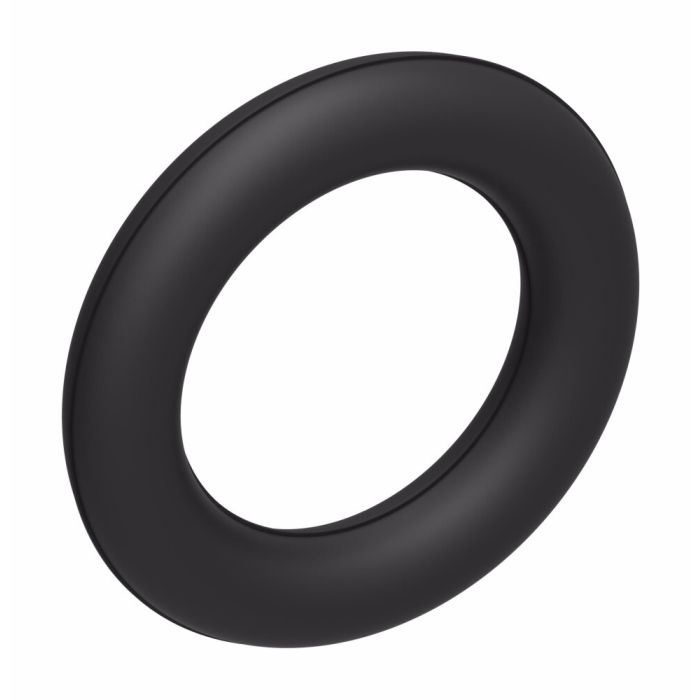

O-Ring for O-Ring Face Seal Fittings & Adapters, 0.50 Inch

Ask A Question
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
I.D.
0.489 in
Materials
Buna-N (90 durometer)
O.D.
0.629 in
Supplier Part Number
FF9446-14
Temperature Range
-40 to +250
Thread Sealant
No
Tube Size
0.50
Product Weight
0.01 lbs
Alternate Part Numbers
Alternate Part Number C1CV52, Alternate Part Number MI-00443998, Alternate Part Number MINO-00015I00548, Alternate Part Number ORS-8
Product Questions & Answers 2

Product Questions & Answers

got a 1/2 inch tube size ORFS fitting, is this the right o-ring for it?
Question by: Johnny C on Feb 6, 2026, 8:58 PM
For a 0.5 inch tube size O-Ring Face Seal setup, this matches that size callout and it is a Buna-N o-ring at 90 durometer. The dimensions on it are 0.489 inch ID, 0.629 inch OD, and 0.07 inch width.
Answer by: Customer Support on Feb 8, 2026, 8:08 PM
what material is this o-ring made from and can it handle hydraulic oil without breaking down
Question by: Dale F on Jan 12, 2026, 8:37 AM
Buna-N rubber at 90 durometer hardness is what you're working with here. That compound holds up well against oil, fuel, and the kind of industrial fluids you'd run through a hydraulic system. The 90 durometer rating means it's on the firmer side, which helps it maintain its shape under pressure rather than deforming over time in a face seal application.
Answer by: Customer Support on Jan 14, 2026, 8:56 AM

Similar Products

Model Number Tube Size Materials Temperature Range I.D. Width (E) O.D. Price Buy Now
FF9446-11 0.25 Buna-N (90 durometer) -40 to +250 0.301 in 0.07 0.441 in
FF9446-12 0.375 Buna-N (90 durometer) -40 to +250 0.364 in 0.07 0.504 in
FF9446-14 0.5 Buna-N (90 durometer) -40 to +250 0.489 in 0.07 0.629 in
FF9446-16 0.63 Buna-N (90 durometer) -40 to +250 0.614 in 0.07 0.754 in
FF9446-18 0.75 Buna-N (90 durometer) -40 to +250 0.739 in 0.07 0.879 in
FF9446-21 1 Buna-N (90 durometer) -40 to +250 0.926 in 0.07 1.066 in
FF9446-25 1.25 Buna-N (90 durometer) -40 to +250 1.176 in 0.07 1.316 in
22546-11 0.25 Neoprene (72 durometer) -65 to +300 0.301 in 0.07 0.441 in
