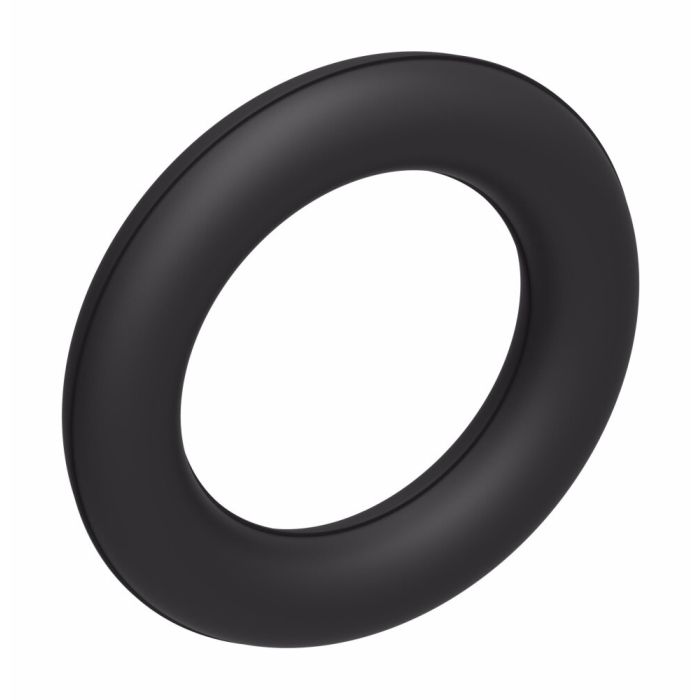

O-Ring for O-Ring Face Seal Fittings & Adapters, 0.25 Inch

Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	I.D. 0.301 in	Materials Buna-N (90 durometer)	O.D. 0.441 in	Supplier Part Number FF9446-11	Temperature Range -40 to +250	Thread Sealant No	Tube Size 0.25	Product Weight 0.02 lbs	Alternate Part Numbers Alternate Part Number C1CV50, Alternate Part Number MI-00443996, Alternate Part Number MINO-00015I00546, Alternate Part Number ORS-4

Product Questions & Answers 5

Product Questions & Answers

What size tubing does this fit? Just wanna make sure it's right for my setup.

Question by: Rex D on Aug 27, 2025, 9:09 AM

These O-rings are made for use with 0.25 inch tubes.

Answer by: Customer Support on Aug 29, 2025, 6:15 AM

got a 1/4 inch tube size ORFS setup, is this the right little o-ring for it?

Question by: Duane J on Aug 12, 2025, 12:54 PM

For a 0.25 inch tube size O-Ring Face Seal fitting or adapter, this o-ring matches that size callout. It’s a Buna-N (90 durometer) ring with a 0.301 inch ID, 0.441 inch OD, and 0.07 inch width.

Answer by: Customer Support on Aug 13, 2025, 2:47 PM

what temp range does this o-ring hold up to? got some equipment running pretty hot and need to know if it'll handle it

Question by: Billy W on Nov 7, 2025, 9:26 PM

Rated from -40 up to +250 degrees Fahrenheit, so it covers a solid spread on both ends. Cold startup conditions and higher operating temps are both within range for this one.

Answer by: Customer Support on Nov 9, 2025, 5:51 PM

trying to match up an old ORFS o-ring, are these the right dimensions for a 1/4 inch tube size?

Question by: Daryl W on Oct 20, 2025, 7:09 AM

Fit comes down to the actual o-ring measurements. This one is for ORFS fittings and adapters with a 0.25 inch tube size, and the o-ring itself measures 0.301 inch ID, 0.441 inch OD, with a 0.07 inch width.

Answer by: Customer Support on Oct 21, 2025, 12:27 PM

What size tubing does this O-ring fit?

Question by: Rick G on Jul 25, 2025, 9:43 AM

It's designed to work with 0.25 inch tubing in O-ring face seal fittings and adapters.

Answer by: Customer Support on Jul 27, 2025, 6:29 AM

Similar Products

Model Number	Tube Size	Materials	Temperature Range	I.D.	Width (E)	O.D.
FF9446-11	0.25	Buna-N (90 durometer)	-40 to +250	0.301 in	0.07	0.441 in
FF9446-12	0.375	Buna-N (90 durometer)	-40 to +250	0.364 in	0.07	0.504 in
FF9446-14	0.5	Buna-N (90 durometer)	-40 to +250	0.489 in	0.07	0.629 in
FF9446-16	0.63	Buna-N (90 durometer)	-40 to +250	0.614 in	0.07	0.754 in
FF9446-18	0.75	Buna-N (90 durometer)	-40 to +250	0.739 in	0.07	0.879 in
FF9446-21	1	Buna-N (90 durometer)	-40 to +250	0.926 in	0.07	1.066 in
FF9446-25	1.25	Buna-N (90 durometer)	-40 to +250	1.176 in	0.07	1.316 in
22546-11	0.25	Neoprene (72 durometer)	-65 to +300	0.301 in	0.07	0.441 in
