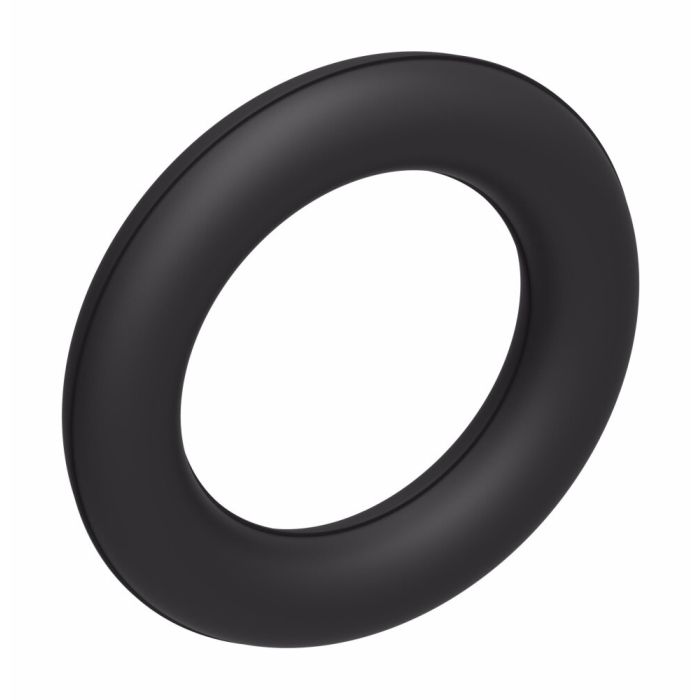

O-Ring for O-Ring Face Seal Fittings & Adapters, 0.25 Inch

Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	I.D. 0.301 in	Materials Neoprene (72 durometer)	O.D. 0.441 in	Supplier Part Number 22546-11	Temperature Range -65 to +300	Thread Sealant No	Tube Size 0.25	Product Weight 0.01 lbs	Alternate Part Numbers Alternate Part Number C1BD60, Alternate Part Number MI-08754527, Alternate Part Number MINO-00015X79009

Product Questions & Answers 1

Product Questions & Answers

trying to replace an old seal, is this the right o-ring size for a 1/4 inch ORS fitting?

Question by: Hugh H on May 26, 2025, 11:50 AM

For a 0.25 inch tube size ORS (O-Ring Face Seal) fitting or adapter, this matches that application and size callout. The ring measures 0.301 inch I.D., 0.441 inch O.D., and 0.07 inch width.

Answer by: Customer Support on May 27, 2025, 4:55 PM

Similar Products

Model Number	Tube Size	Materials	Temperature Range	I.D.	Width (E)	O.D.
FF9446-11	0.25	Buna-N (90 durometer)	-40 to +250	0.301 in	0.07	0.441 in
FF9446-12	0.375	Buna-N (90 durometer)	-40 to +250	0.364 in	0.07	0.504 in
FF9446-14	0.5	Buna-N (90 durometer)	-40 to +250	0.489 in	0.07	0.629 in
FF9446-16	0.63	Buna-N (90 durometer)	-40 to +250	0.614 in	0.07	0.754 in
FF9446-18	0.75	Buna-N (90 durometer)	-40 to +250	0.739 in	0.07	0.879 in
FF9446-21	1	Buna-N (90 durometer)	-40 to +250	0.926 in	0.07	1.066 in
FF9446-25	1.25	Buna-N (90 durometer)	-40 to +250	1.176 in	0.07	1.316 in
22546-11	0.25	Neoprene (72 durometer)	-65 to +300	0.301 in	0.07	0.441 in
