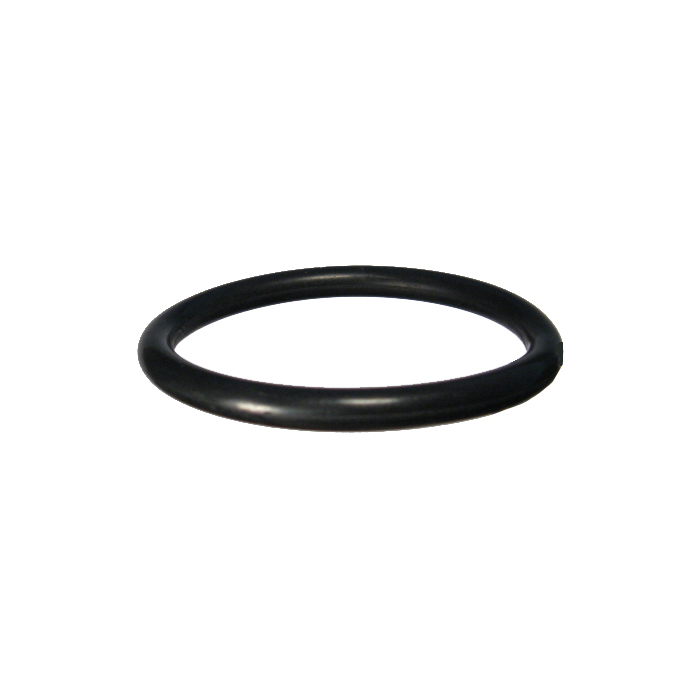

main product photo

O-Ring for SAE O-Ring Boss (Straight Thread O-Ring) Fittings & Adapters, 0.38 Inch

Ask A Question
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Pack Size
1.00
UOM
EA
I.D.
0.468 in
Materials
Buna-N (90 durometer)
O.D.
0.624 in
Supplier Part Number
568-906
Temperature Range
-30 to +250
Thread Sealant
No
Tube Size
0.38
Product Weight
0.01 lbs
Alternate Part Numbers
Alternate Part Number 3-906/N90, Alternate Part Number 568-906, Alternate Part Number C1CL30, Alternate Part Number H90906, Alternate Part Number MI-08748168, Alternate Part Number MINO-00407X88002
Product Questions & Answers 2

Product Questions & Answers

i’ve got an SAE ORB straight thread fitting for 3/8 tube. is this the right o-ring size or am i barkin up the wrong tree
Question by: Harvey B on Aug 15, 2025, 9:43 AM
For a 3/8 inch tube size ORB fitting or adapter, this one matches that callout and uses a Buna-N material at 90 durometer. The dimensions are 0.468 inch ID, 0.624 inch OD, with a 0.078 inch width, which is what you want to line up when you are matching an ORB seal.
Answer by: Customer Support on Aug 17, 2025, 8:23 AM
Wondering if this o-ring will fit my SAE O-ring boss fitting?
Question by: Hugh M on Dec 31, 2025, 8:47 AM
It is specifically designed for SAE O-ring boss (straight thread O-ring) fittings and adapters, with a 0.38 inch tube size.
Answer by: Customer Support on Jan 2, 2026, 6:19 AM

Similar Products

Model Number Tube Size Materials Temperature Range I.D. Width (E) O.D. Price Buy Now
22617-10 0.625 Buna-N (90 durometer) -30 to +250 0.755 in 0.097 0.949 in
22617-12 0.75 Buna-N (90 durometer) -30 to +250 0.924 in 0.116 1.156 in
22617-16 1 Buna-N (90 durometer) -30 to +250 1.171 in 0.116 1.403 in
22617-4 0.25 Buna-N (90 durometer) -30 to +250 0.351 in 0.072 0.495 in
22617-6 0.375 Buna-N (90 durometer) -30 to +250 0.468 in 0.078 0.624 in
22617-8 0.5 Buna-N (90 durometer) -30 to +250 0.644 in 0.087 0.818 in
B-904 0.25 Buna-N (90 durometer) -30 to +250 0.351 in 0.072 0.495 in
B-912 0.75 Buna-N (90 durometer) -30 to +250 0.924 in 0.116 1.156 in
B-916 1 Buna-N (90 durometer) -30 to +250 1.171 in 0.116 1.403 in
22617-5 0.3125 Buna-N (90 durometer) -30 to +250 0.414 in 0.072 0.558 in
B-903 0.188 Buna-N (90 durometer) -30 to +250 0.301 in 0.064 0.429 in
B-906 0.375 Buna-N (90 durometer) -30 to +250 0.468 in 0.078 0.624 in
B-908 0.5 Buna-N (90 durometer) -30 to +250 0.644 in 0.087 0.818 in
B-910 0.625 Buna-N (90 durometer) -30 to +250 0.755 in 0.097 0.949 in
B-914 0.875 Buna-N (90 durometer) -30 to +250 1.047 in 0.116 1.279 in
B-920 1.25 Buna-N (90 durometer) -30 to +250 1.475 in 0.118 1.711 in
B-924 1.5 Buna-N (90 durometer) -30 to +250 1.72 in 0.118 1.956 in
