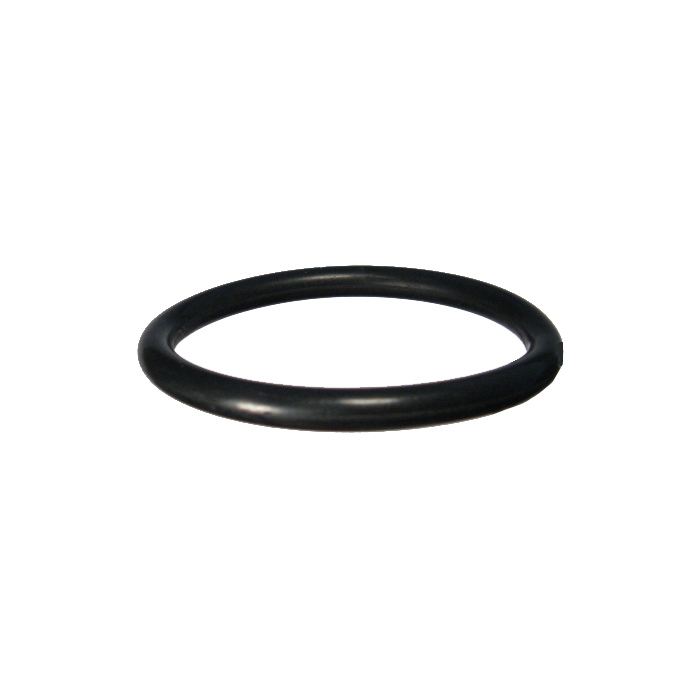

O-Ring for SAE O-Ring Boss (Straight Thread O-Ring) Fittings & Adapters, 0.25 Inch

Ask A Question
Brand
Hercules Sealing Products
Brand
Hercules Sealing Products
Pack Size
1.00
UOM
EA
I.D.
0.351 in
Materials
Buna-N (90 durometer)
O.D.
0.495 in
Supplier Part Number
568-904
Temperature Range
-30 to +250
Thread Sealant
No
Tube Size
0.25
Product Weight
0.01 lbs
Alternate Part Numbers
Alternate Part Number 568-904, Alternate Part Number C1CL29, Alternate Part Number H90904, Alternate Part Number MI-08748165, Alternate Part Number MINO-00407X88001
Product Questions & Answers 4

Product Questions & Answers

trying to replace an o-ring on my SAE o-ring boss fitting, is this the one for 1/4 tube size?
Question by: Danny C on Jul 14, 2025, 9:35 PM
For a 0.25 inch tube size SAE O-Ring Boss (straight thread O-ring) fitting or adapter, this one matches that tube size and uses a Buna-N material at 90 durometer. The seal dimensions are 0.351 inch ID, 0.495 inch OD, and 0.072 inch width.
Answer by: Customer Support on Jul 16, 2025, 12:50 PM
what size o-ring is this exactly, and will it work on a 1/4 inch SAE o-ring boss fitting?
Question by: Ray P on Oct 17, 2025, 7:44 PM
For a 1/4 inch SAE O-Ring Boss straight thread fitting, this is the correct size. The o-ring measures 0.351 inches on the inside diameter, 0.495 inches on the outside diameter, and has a width of 0.072 inches. Those dimensions are spec'd for that fitting size, so you're in the right place.
Answer by: Customer Support on Oct 19, 2025, 2:17 PM
What size o-ring is this, like what size fitting will it work with?
Question by: Duane G on Aug 24, 2025, 8:24 PM
It's made for a 0.25 inch SAE O-Ring Boss, which is also sometimes called a straight thread o-ring fitting.
Answer by: Customer Support on Aug 26, 2025, 3:10 PM
Will this o-ring work with a standard SAE O-ring boss fitting?
Question by: Hank F on Jun 16, 2025, 6:27 PM
this O-ring is made specifically for SAE O-ring boss (straight thread O-ring) fittings and adapters.
Answer by: Customer Support on Jun 18, 2025, 6:22 AM

Similar Products

Model Number Tube Size Materials Temperature Range I.D. Width (E) O.D. Price Buy Now
22617-10 0.625 Buna-N (90 durometer) -30 to +250 0.755 in 0.097 0.949 in
22617-12 0.75 Buna-N (90 durometer) -30 to +250 0.924 in 0.116 1.156 in
22617-16 1 Buna-N (90 durometer) -30 to +250 1.171 in 0.116 1.403 in
22617-4 0.25 Buna-N (90 durometer) -30 to +250 0.351 in 0.072 0.495 in
22617-6 0.375 Buna-N (90 durometer) -30 to +250 0.468 in 0.078 0.624 in
22617-8 0.5 Buna-N (90 durometer) -30 to +250 0.644 in 0.087 0.818 in
B-904 0.25 Buna-N (90 durometer) -30 to +250 0.351 in 0.072 0.495 in
B-912 0.75 Buna-N (90 durometer) -30 to +250 0.924 in 0.116 1.156 in
B-916 1 Buna-N (90 durometer) -30 to +250 1.171 in 0.116 1.403 in
22617-5 0.3125 Buna-N (90 durometer) -30 to +250 0.414 in 0.072 0.558 in
B-903 0.188 Buna-N (90 durometer) -30 to +250 0.301 in 0.064 0.429 in
B-906 0.375 Buna-N (90 durometer) -30 to +250 0.468 in 0.078 0.624 in
B-908 0.5 Buna-N (90 durometer) -30 to +250 0.644 in 0.087 0.818 in
B-910 0.625 Buna-N (90 durometer) -30 to +250 0.755 in 0.097 0.949 in
B-914 0.875 Buna-N (90 durometer) -30 to +250 1.047 in 0.116 1.279 in
B-920 1.25 Buna-N (90 durometer) -30 to +250 1.475 in 0.118 1.711 in
B-924 1.5 Buna-N (90 durometer) -30 to +250 1.72 in 0.118 1.956 in
