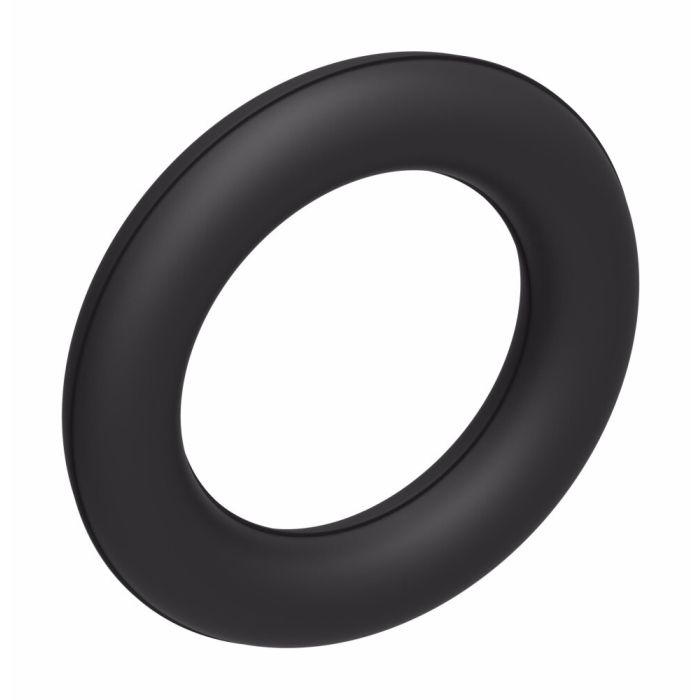

O-Ring for SAE O-Ring Boss (Straight Thread O-Ring) Fittings & Adapters, 0.38 Inch

Ask A Question
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
I.D.
0.468 in
Materials
Buna-N (90 durometer)
O.D.
0.624 in
Supplier Part Number
22617-6
Temperature Range
-30 to +250
Thread Sealant
No
Tube Size
0.38
Product Weight
0.01 lbs
Alternate Part Numbers
Alternate Part Number C1BD79, Alternate Part Number MI-04222346, Alternate Part Number MINO-00015F03943, Alternate Part Number ORB-6
Product Questions & Answers 2

Product Questions & Answers

got a straight thread SAE ORB fitting, is this the right o-ring size for a 3/8 tube?
Question by: Dale M on Apr 8, 2025, 4:19 PM
For a 0.375 inch tube size SAE O-Ring Boss (straight thread) setup, this spare O-ring matches that tube size callout and comes in Buna-N at 90 durometer. The listed dimensions are 0.468 inch ID, 0.624 inch OD, and 0.078 inch width.
Answer by: Customer Support on Apr 10, 2025, 6:41 AM
bought some SAE O-ring boss fittings and need to know if this o-ring will actually fit right -- inner diameter, outer diameter, all that. what are the measurements on this thing?
Question by: Cheryl B on Oct 10, 2025, 3:18 PM
The inner diameter runs 0.468 inches and the outer diameter is 0.624 inches, with a width of 0.078 inches. Those dimensions are spec'd for SAE O-Ring Boss straight thread fittings and adapters, so if that's what you're working with, you're in the right place. No additional thread sealant needed either, which saves a step during assembly.
Answer by: Customer Support on Oct 12, 2025, 8:54 AM

Similar Products

Model Number Tube Size Materials Temperature Range I.D. Width (E) O.D. Price Buy Now
22617-10 0.625 Buna-N (90 durometer) -30 to +250 0.755 in 0.097 0.949 in
22617-12 0.75 Buna-N (90 durometer) -30 to +250 0.924 in 0.116 1.156 in
22617-16 1 Buna-N (90 durometer) -30 to +250 1.171 in 0.116 1.403 in
22617-4 0.25 Buna-N (90 durometer) -30 to +250 0.351 in 0.072 0.495 in
22617-6 0.375 Buna-N (90 durometer) -30 to +250 0.468 in 0.078 0.624 in
22617-8 0.5 Buna-N (90 durometer) -30 to +250 0.644 in 0.087 0.818 in
B-904 0.25 Buna-N (90 durometer) -30 to +250 0.351 in 0.072 0.495 in
B-912 0.75 Buna-N (90 durometer) -30 to +250 0.924 in 0.116 1.156 in
B-916 1 Buna-N (90 durometer) -30 to +250 1.171 in 0.116 1.403 in
22617-5 0.3125 Buna-N (90 durometer) -30 to +250 0.414 in 0.072 0.558 in
B-903 0.188 Buna-N (90 durometer) -30 to +250 0.301 in 0.064 0.429 in
B-906 0.375 Buna-N (90 durometer) -30 to +250 0.468 in 0.078 0.624 in
B-908 0.5 Buna-N (90 durometer) -30 to +250 0.644 in 0.087 0.818 in
B-910 0.625 Buna-N (90 durometer) -30 to +250 0.755 in 0.097 0.949 in
B-914 0.875 Buna-N (90 durometer) -30 to +250 1.047 in 0.116 1.279 in
B-920 1.25 Buna-N (90 durometer) -30 to +250 1.475 in 0.118 1.711 in
B-924 1.5 Buna-N (90 durometer) -30 to +250 1.72 in 0.118 1.956 in
