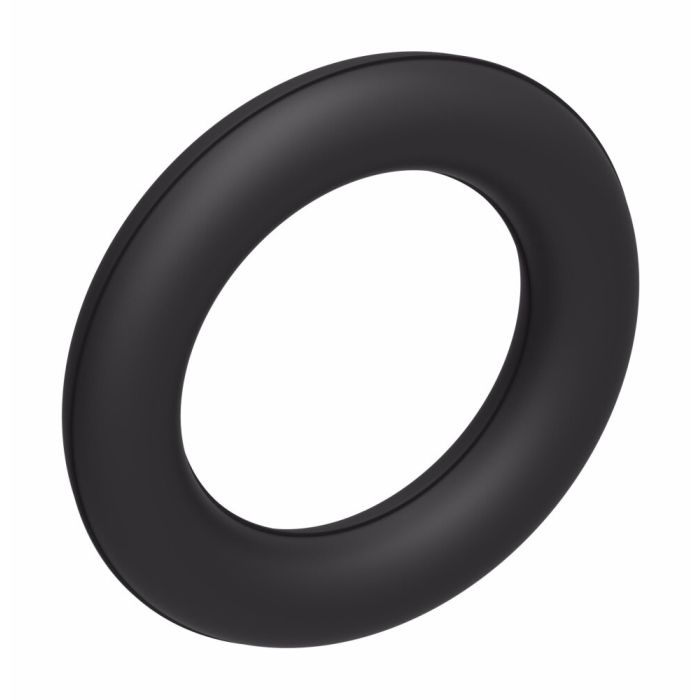

O-Ring for SAE O-Ring Boss (Straight Thread O-Ring) Fittings & Adapters, 0.31 Inch

Ask A Question
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
I.D.
0.414 in
Materials
Buna-N (90 durometer)
O.D.
0.558 in
Supplier Part Number
22617-5
Temperature Range
-30 to +250
Thread Sealant
No
Tube Size
0.31
Product Weight
0.01 lbs
Alternate Part Numbers
Alternate Part Number C1BD78, Alternate Part Number MI-00328736, Alternate Part Number MINO-00015F69442
Product Questions & Answers 3

Product Questions & Answers

What's the temp range on this O-ring? Just wanna make sure it can handle what I'm throwin' at it.
Question by: Scott G on Jul 6, 2025, 11:25 AM
This O-ring can handle temps from -30°F to +250°F. That should cover a pretty wide range of applications.
Answer by: Customer Support on Jul 7, 2025, 9:41 PM
got a straight thread SAE o-ring boss adapter that takes the 22617-5 seal, is this the right o-ring size?
Question by: Rusty W on Jul 20, 2025, 9:11 AM
For SAE O-Ring Boss (straight thread O-ring) fittings and adapters, part number 22617-5 is a Buna-N O-ring with a 0.414 inch ID, 0.558 inch OD, and 0.072 inch width, so it matches that spare-part callout and size.
Answer by: Customer Support on Jul 21, 2025, 1:51 PM
got a SAE O-Ring Boss fitting that's been leaking on me and I need to know if this is the right size o-ring to fix it. outer diameter, inner diameter, all that?
Question by: Brent C on Oct 28, 2025, 2:22 PM
For SAE O-Ring Boss straight thread fittings, the dimensions on this one are 0.558 inches outer diameter, 0.414 inches inner diameter, and 0.072 inches wide. Match those up against what your fitting calls for and you'll know right away if it's your part. It's Buna-N material at 90 durometer, so it's built to hold up in hydraulic applications where you need a solid, reliable seal.
Answer by: Customer Support on Oct 30, 2025, 6:30 AM

Similar Products

Model Number Tube Size Materials Temperature Range I.D. Width (E) O.D. Price Buy Now
22617-10 0.625 Buna-N (90 durometer) -30 to +250 0.755 in 0.097 0.949 in
22617-12 0.75 Buna-N (90 durometer) -30 to +250 0.924 in 0.116 1.156 in
22617-16 1 Buna-N (90 durometer) -30 to +250 1.171 in 0.116 1.403 in
22617-4 0.25 Buna-N (90 durometer) -30 to +250 0.351 in 0.072 0.495 in
22617-6 0.375 Buna-N (90 durometer) -30 to +250 0.468 in 0.078 0.624 in
22617-8 0.5 Buna-N (90 durometer) -30 to +250 0.644 in 0.087 0.818 in
B-904 0.25 Buna-N (90 durometer) -30 to +250 0.351 in 0.072 0.495 in
B-912 0.75 Buna-N (90 durometer) -30 to +250 0.924 in 0.116 1.156 in
B-916 1 Buna-N (90 durometer) -30 to +250 1.171 in 0.116 1.403 in
22617-5 0.3125 Buna-N (90 durometer) -30 to +250 0.414 in 0.072 0.558 in
B-903 0.188 Buna-N (90 durometer) -30 to +250 0.301 in 0.064 0.429 in
B-906 0.375 Buna-N (90 durometer) -30 to +250 0.468 in 0.078 0.624 in
B-908 0.5 Buna-N (90 durometer) -30 to +250 0.644 in 0.087 0.818 in
B-910 0.625 Buna-N (90 durometer) -30 to +250 0.755 in 0.097 0.949 in
B-914 0.875 Buna-N (90 durometer) -30 to +250 1.047 in 0.116 1.279 in
B-920 1.25 Buna-N (90 durometer) -30 to +250 1.475 in 0.118 1.711 in
B-924 1.5 Buna-N (90 durometer) -30 to +250 1.72 in 0.118 1.956 in
