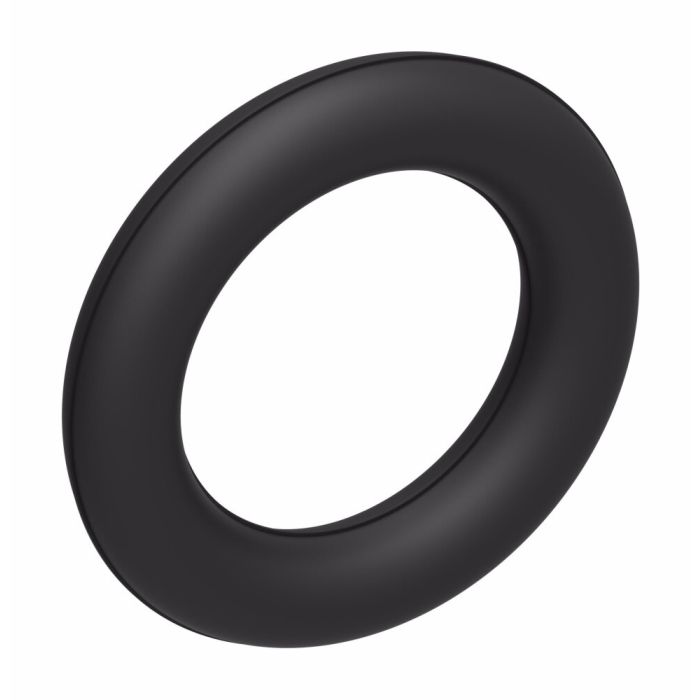

O-Ring for SAE O-Ring Boss (Straight Thread O-Ring) Fittings & Adapters, 0.25 Inch

Ask A Question
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
I.D.
0.351 in
Materials
Buna-N (90 durometer)
O.D.
0.495 in
Supplier Part Number
22617-4
Temperature Range
-30 to +250
Thread Sealant
No
Tube Size
0.25
Product Weight
0.01 lbs
Alternate Part Numbers
Alternate Part Number C1BD77, Alternate Part Number MI-00328734, Alternate Part Number MINO-00015F69441, Alternate Part Number ORB-4
Product Questions & Answers 2

Product Questions & Answers

got a straight thread SAE o-ring boss fitting, is this the right o-ring size for the 1/4 tube stuff?
Question by: Howard E on Feb 18, 2026, 3:07 PM
For a 0.25 inch tube size SAE O-Ring Boss (straight thread) connection, this matches the listed tube size and it is a Buna-N o-ring. The ring dimensions are 0.351 inch ID, 0.495 inch OD, and 0.072 inch width.
Answer by: Customer Support on Feb 19, 2026, 6:38 PM
fits a 1/4 inch SAE o-ring boss port? just want to make sure before i order a handful of these
Question by: Neil B on Apr 14, 2025, 11:28 AM
That's what this one's built for. The inner diameter runs 0.351 inches with an outer diameter of 0.495 inches and a width of 0.072 inches, which puts it right in spec for 1/4 inch SAE O-Ring Boss straight thread fittings and adapters. The Buna-N material at 90 durometer gives it a firm enough seat to hold tight without deforming under normal torque.
Answer by: Customer Support on Apr 16, 2025, 10:53 AM

Similar Products

Model Number Tube Size Materials Temperature Range I.D. Width (E) O.D. Price Buy Now
22617-10 0.625 Buna-N (90 durometer) -30 to +250 0.755 in 0.097 0.949 in
22617-12 0.75 Buna-N (90 durometer) -30 to +250 0.924 in 0.116 1.156 in
22617-16 1 Buna-N (90 durometer) -30 to +250 1.171 in 0.116 1.403 in
22617-4 0.25 Buna-N (90 durometer) -30 to +250 0.351 in 0.072 0.495 in
22617-6 0.375 Buna-N (90 durometer) -30 to +250 0.468 in 0.078 0.624 in
22617-8 0.5 Buna-N (90 durometer) -30 to +250 0.644 in 0.087 0.818 in
B-904 0.25 Buna-N (90 durometer) -30 to +250 0.351 in 0.072 0.495 in
B-912 0.75 Buna-N (90 durometer) -30 to +250 0.924 in 0.116 1.156 in
B-916 1 Buna-N (90 durometer) -30 to +250 1.171 in 0.116 1.403 in
22617-5 0.3125 Buna-N (90 durometer) -30 to +250 0.414 in 0.072 0.558 in
B-903 0.188 Buna-N (90 durometer) -30 to +250 0.301 in 0.064 0.429 in
B-906 0.375 Buna-N (90 durometer) -30 to +250 0.468 in 0.078 0.624 in
B-908 0.5 Buna-N (90 durometer) -30 to +250 0.644 in 0.087 0.818 in
B-910 0.625 Buna-N (90 durometer) -30 to +250 0.755 in 0.097 0.949 in
B-914 0.875 Buna-N (90 durometer) -30 to +250 1.047 in 0.116 1.279 in
B-920 1.25 Buna-N (90 durometer) -30 to +250 1.475 in 0.118 1.711 in
B-924 1.5 Buna-N (90 durometer) -30 to +250 1.72 in 0.118 1.956 in
