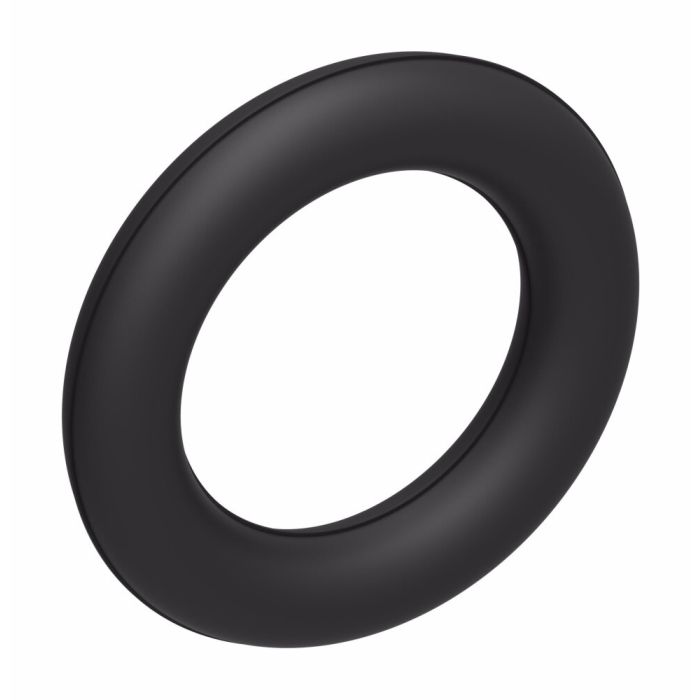

O-Ring for SAE O-Ring Boss (Straight Thread O-Ring) Fittings & Adapters, 1.00 Inch

Ask A Question
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
I.D.
1.171 in
Materials
Buna-N (90 durometer)
O.D.
1.403 in
Supplier Part Number
22617-16
Temperature Range
-30 to +250
Thread Sealant
No
Tube Size
1
Product Weight
0.01 lbs
Alternate Part Numbers
Alternate Part Number C1BD75, Alternate Part Number MI-00328750, Alternate Part Number MINO-00015F69452, Alternate Part Number ORB-16
Product Questions & Answers 3

Product Questions & Answers

got a straight thread SAE o-ring boss fitting for 1 inch tube, is this the right o-ring size?
Question by: Jimmy W on Sep 19, 2025, 10:46 AM
For a 1 inch tube size SAE O-Ring Boss (straight thread) connection, this spare O-ring matches that tube size and is Buna-N at 90 durometer, with a 1.171 inch ID and 1.403 inch OD.
Answer by: Customer Support on Sep 20, 2025, 8:06 PM
What size is this O-ring? I need to make sure it's the right fit for my SAE fitting.
Question by: Frank H on Nov 17, 2025, 6:11 PM
It measures 1.171 inches on the inside and 1.403 inches on the outside, with a width of 0.116 inches. This is designed to fit SAE O-Ring Boss fittings.
Answer by: Customer Support on Nov 19, 2025, 8:31 AM
Got a SAE O-Ring Boss fitting that needs a new seal. The internal diameter on this one is 1.171 inches, right? Just want to make sure before I order a handful of em.
Question by: Troy J on Jul 23, 2025, 6:56 AM
Correct on both counts. The internal diameter is 1.171 inches and the outer diameter comes in at 1.403 inches, with a width of 0.116 inches. Those dimensions are specific to SAE O-Ring Boss straight thread fittings and adapters, so as long as your fitting matches that thread type and size, you should be in good shape.
Answer by: Customer Support on Jul 24, 2025, 5:15 PM

Similar Products

Model Number Tube Size Materials Temperature Range I.D. Width (E) O.D. Price Buy Now
22617-10 0.625 Buna-N (90 durometer) -30 to +250 0.755 in 0.097 0.949 in
22617-12 0.75 Buna-N (90 durometer) -30 to +250 0.924 in 0.116 1.156 in
22617-16 1 Buna-N (90 durometer) -30 to +250 1.171 in 0.116 1.403 in
22617-4 0.25 Buna-N (90 durometer) -30 to +250 0.351 in 0.072 0.495 in
22617-6 0.375 Buna-N (90 durometer) -30 to +250 0.468 in 0.078 0.624 in
22617-8 0.5 Buna-N (90 durometer) -30 to +250 0.644 in 0.087 0.818 in
B-904 0.25 Buna-N (90 durometer) -30 to +250 0.351 in 0.072 0.495 in
B-912 0.75 Buna-N (90 durometer) -30 to +250 0.924 in 0.116 1.156 in
B-916 1 Buna-N (90 durometer) -30 to +250 1.171 in 0.116 1.403 in
22617-5 0.3125 Buna-N (90 durometer) -30 to +250 0.414 in 0.072 0.558 in
B-903 0.188 Buna-N (90 durometer) -30 to +250 0.301 in 0.064 0.429 in
B-906 0.375 Buna-N (90 durometer) -30 to +250 0.468 in 0.078 0.624 in
B-908 0.5 Buna-N (90 durometer) -30 to +250 0.644 in 0.087 0.818 in
B-910 0.625 Buna-N (90 durometer) -30 to +250 0.755 in 0.097 0.949 in
B-914 0.875 Buna-N (90 durometer) -30 to +250 1.047 in 0.116 1.279 in
B-920 1.25 Buna-N (90 durometer) -30 to +250 1.475 in 0.118 1.711 in
B-924 1.5 Buna-N (90 durometer) -30 to +250 1.72 in 0.118 1.956 in
