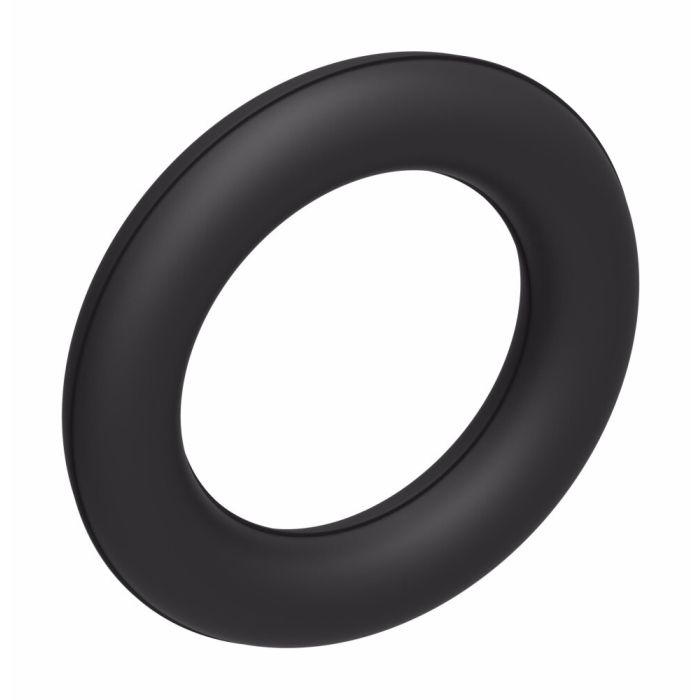

O-Ring for SAE O-Ring Boss (Straight Thread O-Ring) Fittings & Adapters, 0.63 Inch

Ask A Question
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
I.D.
0.755 in
Materials
Buna-N (90 durometer)
O.D.
0.949 in
Supplier Part Number
22617-10
Temperature Range
-30 to +250
Thread Sealant
No
Tube Size
0.63
Product Weight
0.01 lbs
Alternate Part Numbers
Alternate Part Number C1BD73, Alternate Part Number MI-00328742, Alternate Part Number MINO-00015F69445, Alternate Part Number ORB-10
Product Questions & Answers 3

Product Questions & Answers

trying to replace an o-ring on an SAE o-ring boss straight thread fitting, is this the right size for a 5/8 tube?
Question by: Wade W on Jan 2, 2026, 3:24 PM
For a 0.625 inch tube size, this O-ring matches that tube callout and it’s listed for SAE O-ring boss (straight thread) fittings and adapters. The actual ring dimensions are 0.755 inch ID, 0.949 inch OD, with a 0.097 inch width.
Answer by: Customer Support on Jan 4, 2026, 6:38 AM
what's the temp range on this o-ring? got a application that sees some heat and want to make sure it'll hold up
Question by: Larry H on Jun 17, 2025, 8:03 PM
Buna-N at 90 durometer handles anywhere from -30 up to 250 degrees Fahrenheit, so it's got a solid working range for most hydraulic setups running elevated temps. As long as your system stays within that window, the material holds its shape and sealing properties without breaking down.
Answer by: Customer Support on Jun 19, 2025, 7:49 AM
Will this o-ring work with a standard SAE fitting?
Question by: Sherry A on Sep 5, 2025, 8:26 PM
This O-ring is specifically made for SAE O-ring boss fittings and adapters, so it should be a good fit.
Answer by: Customer Support on Sep 7, 2025, 6:05 AM

Similar Products

Model Number Tube Size Materials Temperature Range I.D. Width (E) O.D. Price Buy Now
22617-10 0.625 Buna-N (90 durometer) -30 to +250 0.755 in 0.097 0.949 in
22617-12 0.75 Buna-N (90 durometer) -30 to +250 0.924 in 0.116 1.156 in
22617-16 1 Buna-N (90 durometer) -30 to +250 1.171 in 0.116 1.403 in
22617-4 0.25 Buna-N (90 durometer) -30 to +250 0.351 in 0.072 0.495 in
22617-6 0.375 Buna-N (90 durometer) -30 to +250 0.468 in 0.078 0.624 in
22617-8 0.5 Buna-N (90 durometer) -30 to +250 0.644 in 0.087 0.818 in
B-904 0.25 Buna-N (90 durometer) -30 to +250 0.351 in 0.072 0.495 in
B-912 0.75 Buna-N (90 durometer) -30 to +250 0.924 in 0.116 1.156 in
B-916 1 Buna-N (90 durometer) -30 to +250 1.171 in 0.116 1.403 in
22617-5 0.3125 Buna-N (90 durometer) -30 to +250 0.414 in 0.072 0.558 in
B-903 0.188 Buna-N (90 durometer) -30 to +250 0.301 in 0.064 0.429 in
B-906 0.375 Buna-N (90 durometer) -30 to +250 0.468 in 0.078 0.624 in
B-908 0.5 Buna-N (90 durometer) -30 to +250 0.644 in 0.087 0.818 in
B-910 0.625 Buna-N (90 durometer) -30 to +250 0.755 in 0.097 0.949 in
B-914 0.875 Buna-N (90 durometer) -30 to +250 1.047 in 0.116 1.279 in
B-920 1.25 Buna-N (90 durometer) -30 to +250 1.475 in 0.118 1.711 in
B-924 1.5 Buna-N (90 durometer) -30 to +250 1.72 in 0.118 1.956 in
