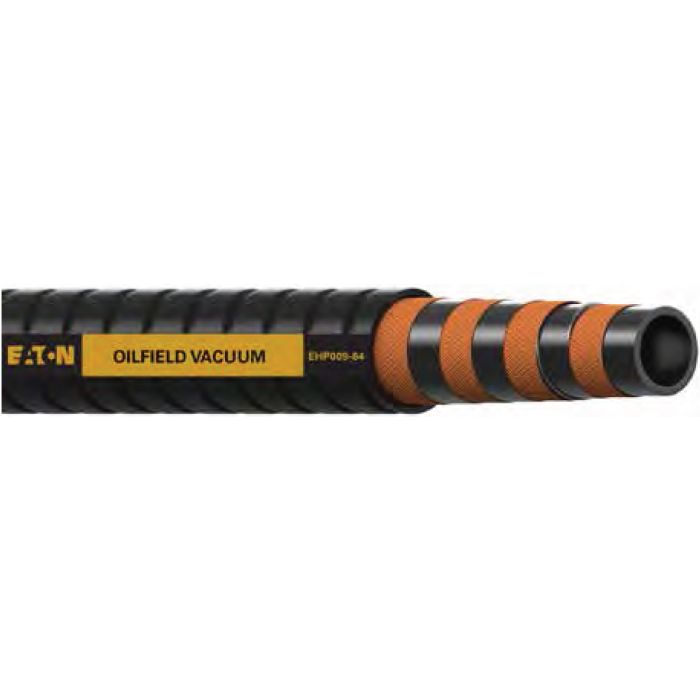

Oilfield Vacuum Hose
Application |
For transfer applications such as drilling mud or crude oil. Not recommended for refined petroleum products. Please review application requirements and limitations found in NAHAD Pressure Guideline Chart |
Construction |
Tube: Nitrile blend; Reinforcement: High-tensile synthetic textile with dual steel helical wires; Cover: Corrugated SBR blend |
Fitting Attachment |
Crimp, Swage, Band & Buckle, Band-It Jr Preformed Clamps |
Fittings |
Cam and Groove, Combination Nipple |
Fittings & Fitting Attachment Suggestions |
• Cam and groove • Male NPT • Unions |
Temperature Range |
-22°F to +176°F |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Vacuum Service | Reel Qty (ft) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| EHP009-40-100 | 2.5 | 3.17 | 150 | 7.68 | 28 | 100 |
|
||
| EHP009-24-100 | 1.5 | 1.78 | 150 | 4.53 | 28 | 100 |
|
||
| EHP009-32-100 | 2 | 2.41 | 150 | 5.71 | 28 | 100 |
|
||
| EHP009-48-100 | 3 | 3.58 | 150 | 9.4499 | 28 | 100 |
|
||
| EHP009-64-100 | 4 | 4.58 | 150 | 13.39 | 28 | 100 |
|
