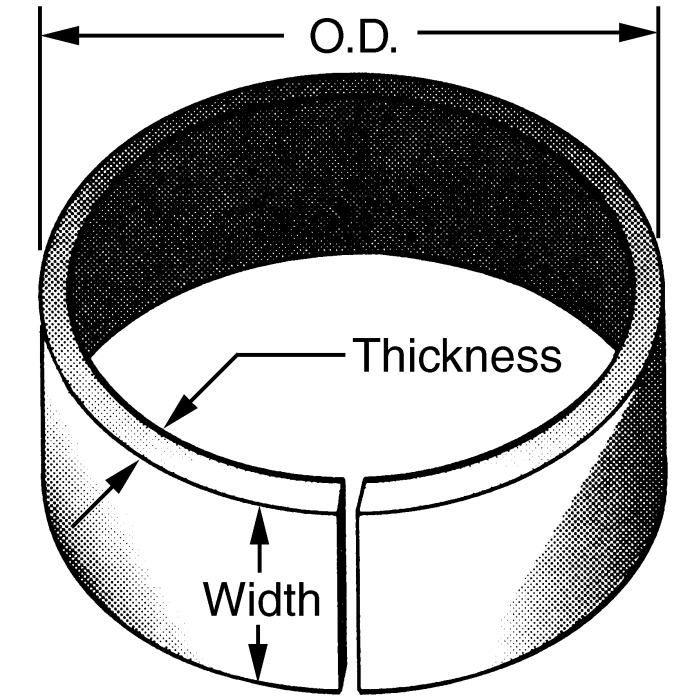

Nylon Wear Rings
Compressive Strength |
35,000 PSI. |
Temperature Range |
-40°F to 250°F. |
Tensile Strength |
27,000 PSI. |
Products
| Model Number | Thickness (in) | Width (in) | O.D. | Price | Buy Now |
|---|---|---|---|---|---|
| 612-250-037 | 1/8 | 3/8 | 2.5 in |
|
|
| 612-275-050 | 1/8 | 1/2 | 2.75 in |
|
|
| 612-275-100 | 1/8 | 1 | 2.75 in |
|
|
| 612-300-050 | 1/8 | 1/2 | 3 in |
|
|
| 612-350-050 | 1/8 | 1/2 | 3.5 in |
|
|
| 612-400-062 | 1/8 | 5/8 | 4 in |
|
|
| 612-450-050 | 1/8 | 1/2 | 4.5 in |
|
|
| 612-500-050 | 1/8 | 1/2 | 5 in |
|
|
| 612-500-075 | 1/8 | 3/4 | 5 in |
|
|
| 612-200-037 | 1/8 | 3/8 | 2 in |
|
|
| 612-200-062 | 1/8 | 5/8 | 2 in |
|
|
| 612-200-075 | 1/8 | 3/4 | 2 in |
|
|
| 612-225-050 | 1/8 | 1/2 | 2.25 in |
|
|
| 612-250-062 | 1/8 | 5/8 | 2.5 in |
|
|
| 612-250-075 | 1/8 | 3/4 | 2.5 in |
|
|
| 612-300-037 | 1/8 | 3/8 | 3 in |
|
|
| 612-300-075 | 1/8 | 3/4 | 3 in |
|
|
| 612-350-037 | 1/8 | 3/8 | 3.5 in |
|
|
| 612-350-075 | 1/8 | 3/4 | 3.5 in |
|
|
| 612-375-050 | 1/8 | 1/2 | 3.75 in |
|
|
| 612-450-075 | 1/8 | 3/4 | 4.5 in |
|
|
| 612-500-100 | 1/8 | 1 | 5 in |
|
|
| 612-600-037 | 1/8 | 3/8 | 6 in |
|
|
| 612-600-050 | 1/8 | 1/2 | 6 in |
|
|
| 612-600-062 | 1/8 | 5/8 | 6 in |
|
|
| 612-700-050 | 1/8 | 1/2 | 7 in |
|
|
| 612-400-050 | 1/8 | 1/2 | 4 in |
|
