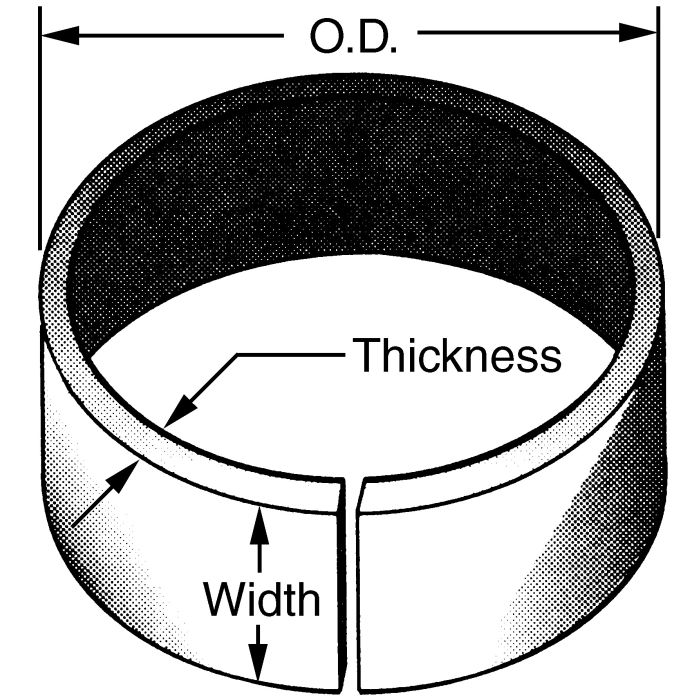

Nylon Wear Ring, 7.00 Inch OD, 1/8 Inch Thick, 1/2 Inch Width

Alternate Part Numbers Alternate Part Number C1KK58	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	O.D. 7 in	Supplier Part Number 612-700-050-SC	Thickness (in) 1/8	Product Weight 0.08 lbs	Width (in) 1/2

Product Questions & Answers

Reckon this wear ring can handle some heat? I'm seeing temps around 230-ish in my hydraulic system.

Question by: Ronnie S on Mar 24, 2026, 7:08 PM

These nylon wear rings are rated to handle temperatures up to 250°F, so you should be okay at 230°F.

Answer by: Customer Support on Mar 25, 2026, 8:06 PM

Model Number	Thickness (in)	Width (in)	O.D.
612-250-037	1/8	3/8	2.5 in
612-275-050	1/8	1/2	2.75 in
612-275-100	1/8	1	2.75 in
612-300-050	1/8	1/2	3 in
612-350-050	1/8	1/2	3.5 in
612-400-062	1/8	5/8	4 in
612-450-050	1/8	1/2	4.5 in
612-500-050	1/8	1/2	5 in
612-500-075	1/8	3/4	5 in
612-200-037	1/8	3/8	2 in
612-200-062	1/8	5/8	2 in
612-200-075	1/8	3/4	2 in
612-225-050	1/8	1/2	2.25 in
612-250-062	1/8	5/8	2.5 in
612-250-075	1/8	3/4	2.5 in
612-300-037	1/8	3/8	3 in
612-300-075	1/8	3/4	3 in
612-350-037	1/8	3/8	3.5 in
612-350-075	1/8	3/4	3.5 in
612-375-050	1/8	1/2	3.75 in
612-450-075	1/8	3/4	4.5 in
612-500-100	1/8	1	5 in
612-600-037	1/8	3/8	6 in
612-600-050	1/8	1/2	6 in
612-600-062	1/8	5/8	6 in
612-700-050	1/8	1/2	7 in
612-400-050	1/8	1/2	4 in
