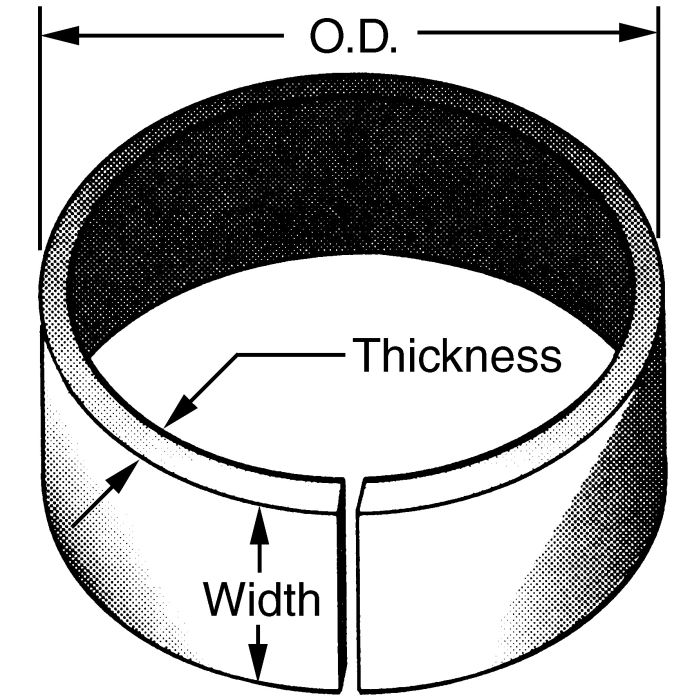

Nylon Wear Ring, 6.00 Inch OD, 1/8 Inch Thick, 3/8 Inch Width

Alternate Part Numbers Alternate Part Number C1BW61	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	O.D. 6 in	Supplier Part Number 612-600-037	Thickness (in) 1/8	Product Weight 0.05 lbs	Width (in) 3/8

Product Questions & Answers 1

Product Questions & Answers

what temp range is this nylon wear ring rated for, and will it hold up in a cylinder that runs pretty hot?

Question by: Darryl R on Feb 19, 2026, 7:15 PM

Rated from -40°F up to 250°F, so it handles a fair amount of heat without breaking down. For most hydraulic cylinders running warm under normal duty, that upper limit gives you solid headroom. If your cylinder is regularly pushing past 250°F at the seal area, that would be outside what this material is rated for.

Answer by: Customer Support on Feb 21, 2026, 6:26 PM

Similar Products

Model Number	Thickness (in)	Width (in)	O.D.
612-250-037	1/8	3/8	2.5 in
612-275-050	1/8	1/2	2.75 in
612-275-100	1/8	1	2.75 in
612-300-050	1/8	1/2	3 in
612-350-050	1/8	1/2	3.5 in
612-400-062	1/8	5/8	4 in
612-450-050	1/8	1/2	4.5 in
612-500-050	1/8	1/2	5 in
612-500-075	1/8	3/4	5 in
612-200-037	1/8	3/8	2 in
612-200-062	1/8	5/8	2 in
612-200-075	1/8	3/4	2 in
612-225-050	1/8	1/2	2.25 in
612-250-062	1/8	5/8	2.5 in
612-250-075	1/8	3/4	2.5 in
612-300-037	1/8	3/8	3 in
612-300-075	1/8	3/4	3 in
612-350-037	1/8	3/8	3.5 in
612-350-075	1/8	3/4	3.5 in
612-375-050	1/8	1/2	3.75 in
612-450-075	1/8	3/4	4.5 in
612-500-100	1/8	1	5 in
612-600-037	1/8	3/8	6 in
612-600-050	1/8	1/2	6 in
612-600-062	1/8	5/8	6 in
612-700-050	1/8	1/2	7 in
612-400-050	1/8	1/2	4 in
