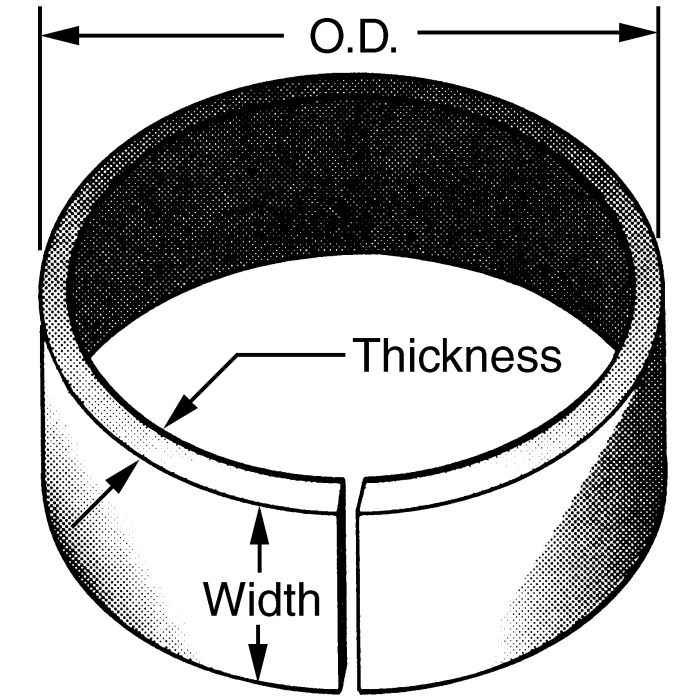

Nylon Wear Ring, 5.00 Inch OD, 1/8 Inch Thick, 1 Inch Width

Alternate Part Numbers Alternate Part Number C1BW59	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	O.D. 5 in	Supplier Part Number 612-500-100-SC	Thickness (in) 1/8	Product Weight 0.11 lbs	Width (in) 1

Product Questions & Answers 2

Product Questions & Answers

What kind of pressure can this wear ring handle before it gives out?

Question by: Dale P on Nov 17, 2025, 12:42 PM

Compressive strength on this nylon wear ring is rated to 35,000 PSI, so it's pretty tough stuff.

Answer by: Customer Support on Nov 19, 2025, 6:53 AM

what temp range can this wear ring handle? got equipment running in some pretty cold conditions and want to make sure it won't get brittle on me

Question by: Gene L on Jul 27, 2025, 9:47 AM

Rated from -40°F up to 250°F, so cold weather operation is well within its range. Nylon at this grade holds up through freeze conditions without getting brittle or losing its shape, and the upper end gives you solid headroom for warmer running equipment too.

Answer by: Customer Support on Jul 29, 2025, 6:56 AM

Similar Products

Model Number	Thickness (in)	Width (in)	O.D.
612-250-037	1/8	3/8	2.5 in
612-275-050	1/8	1/2	2.75 in
612-275-100	1/8	1	2.75 in
612-300-050	1/8	1/2	3 in
612-350-050	1/8	1/2	3.5 in
612-400-062	1/8	5/8	4 in
612-450-050	1/8	1/2	4.5 in
612-500-050	1/8	1/2	5 in
612-500-075	1/8	3/4	5 in
612-200-037	1/8	3/8	2 in
612-200-062	1/8	5/8	2 in
612-200-075	1/8	3/4	2 in
612-225-050	1/8	1/2	2.25 in
612-250-062	1/8	5/8	2.5 in
612-250-075	1/8	3/4	2.5 in
612-300-037	1/8	3/8	3 in
612-300-075	1/8	3/4	3 in
612-350-037	1/8	3/8	3.5 in
612-350-075	1/8	3/4	3.5 in
612-375-050	1/8	1/2	3.75 in
612-450-075	1/8	3/4	4.5 in
612-500-100	1/8	1	5 in
612-600-037	1/8	3/8	6 in
612-600-050	1/8	1/2	6 in
612-600-062	1/8	5/8	6 in
612-700-050	1/8	1/2	7 in
612-400-050	1/8	1/2	4 in
