what's the temp range on this wear ring? got an application that sees some cold mornings and hot afternoons and need to know if nylon can hold up to that
Question by: Danny B on Mar 4, 2026, 5:22 PM
Rated for -40°F on the cold end and up to 250°F on the high side, so normal outdoor temperature swings aren't going to push it past its limits. That range covers most industrial and mobile hydraulic environments without any issue.
Answer by: Customer Support on Mar 6, 2026, 6:08 AM
got a cylinder with a 5 inch bore area, is this wear ring the right size or am i readin it wrong
Question by: Jean O on Dec 28, 2025, 7:57 AM

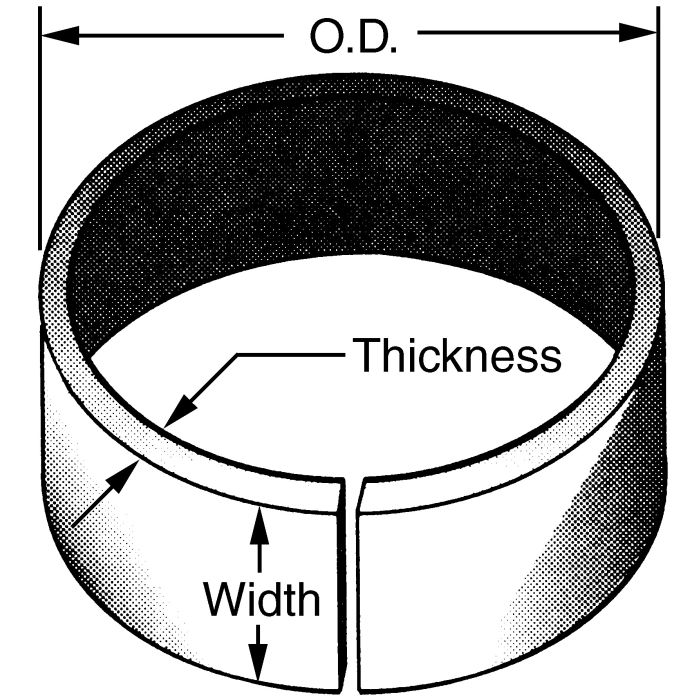

Fit comes down to the ring’s physical dimensions. This one is a nylon wear ring with a 5.00 inch outside diameter, 1/8 inch thickness, and 3/4 inch width, so you would match those numbers to the groove and the diameter you’re working with.
Answer by: Customer Support on Dec 29, 2025, 5:23 PM
What's the compressive strength on this wear ring?
Question by: Eddie M on Oct 25, 2025, 12:34 PM
It's rated for a compressive strength of 35,000 PSI.
Answer by: Customer Support on Oct 27, 2025, 6:37 AM
what temp range can these handle? got equipment running pretty hot and want to make sure they hold up before I order a bunch
Question by: Earl P on Oct 23, 2025, 9:00 AM
Rated from -40°F up to 250°F, so they can take a fair amount of heat without breaking down. For most hydraulic cylinder applications running at elevated temps, that range covers things well. Just make sure your operating conditions stay within that window and you should be in good shape.
Answer by: Customer Support on Oct 24, 2025, 10:01 AM
What's the temperature range this wear ring can handle?
Question by: Steve J on May 4, 2025, 5:46 PM
This nylon wear ring is rated for temperatures from -40°F up to 250°F.
Answer by: Customer Support on May 6, 2025, 6:46 AM
