what size is this wear ring exactly, and will it hold up running at high pressure?
Question by: Billy B on Jun 6, 2025, 10:57 AM

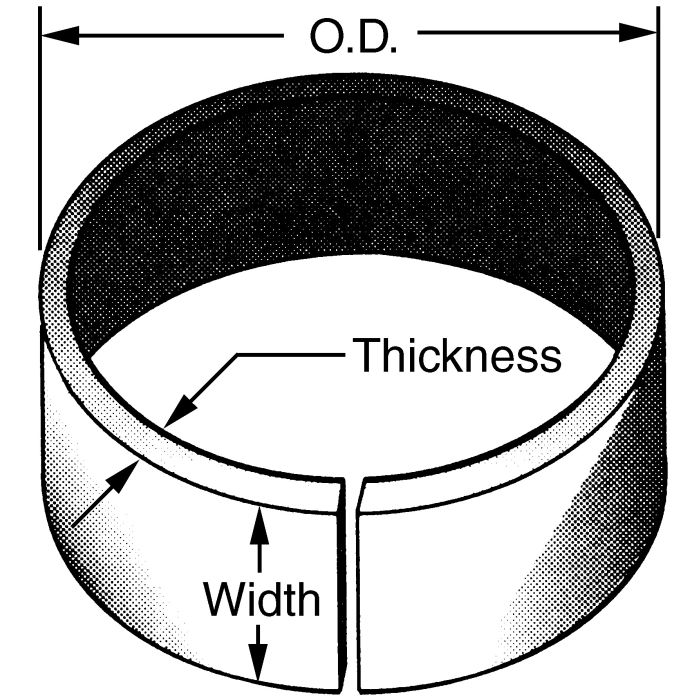

The outside diameter is 2.75 inches, the thickness is 1/8 inch, and the width is 1/2 inch. On the pressure side, nylon at this grade carries a compressive strength of 35,000 PSI, so it handles serious hydraulic loads without giving out. Tensile strength runs 27,000 PSI, which keeps it from pulling apart under dynamic loading conditions.
Answer by: Customer Support on Jun 8, 2025, 6:49 AM
got a cylinder that takes a 2-3/4 od wear ring, is this one the right size or am i missing something
Question by: Curt R on Nov 30, 2025, 4:25 PM
For sizing, this wear ring is 2.75 inch outside diameter with a 1/2 inch width and 1/8 inch thickness. If those three dimensions match what your cylinder calls for, it is the correct size.
Answer by: Customer Support on Dec 2, 2025, 6:49 AM
What kind of pressure can this nylon wear ring handle before it gives out?
Question by: Travis H on Nov 29, 2025, 7:51 PM
With a compressive strength of 35,000 PSI, this nylon wear ring is built to withstand substantial pressure in demanding hydraulic applications.
Answer by: Customer Support on Dec 1, 2025, 6:28 AM
