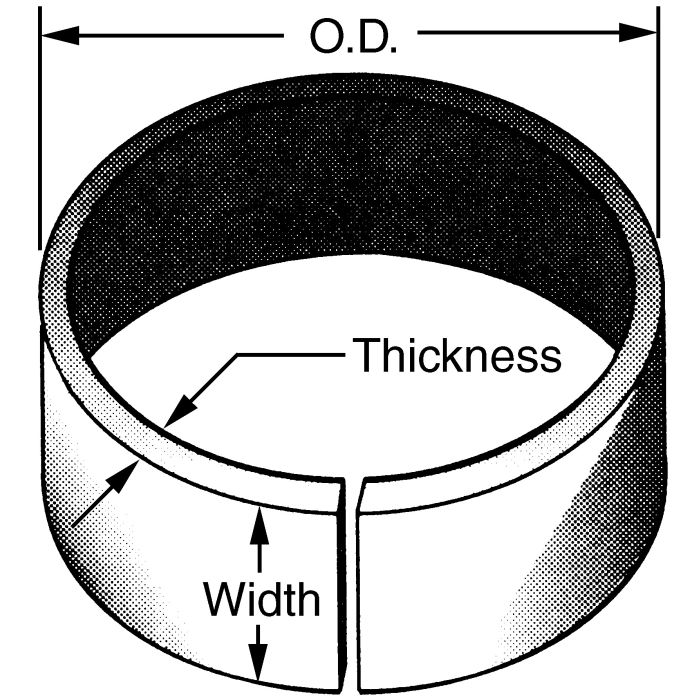

Nylon Wear Ring, 2.00 Inch OD, 1/8 Inch Thick, 3/4 Inch Width

Alternate Part Numbers Alternate Part Number C1BW39	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	O.D. 2 in	Supplier Part Number 612-200-075	Thickness (in) 1/8	Product Weight 0.03 lbs	Width (in) 3/4

Product Questions & Answers 2

Product Questions & Answers

what's the temp range on this wear ring? got equipment that sees some pretty cold mornings and hot afternoons and need something that'll hold up through both

Question by: Cindy W on Jan 30, 2026, 11:26 AM

Rated from -40°F up to 250°F, so it handles wide swings without issue. Cold startups and summer heat cycles are both well within what this nylon ring is built to take.

Answer by: Customer Support on Feb 1, 2026, 11:08 AM

What's the deal with the compressive strength on this wear ring? Just trying to get a feel for how tough it is.

Question by: Darryl S on Mar 25, 2026, 10:07 AM

This nylon wear ring holds up to 35,000 PSI compressive strength. It's made to handle some serious pressure.

Answer by: Customer Support on Mar 27, 2026, 6:10 AM

Similar Products

Model Number	Thickness (in)	Width (in)	O.D.
612-250-037	1/8	3/8	2.5 in
612-275-050	1/8	1/2	2.75 in
612-275-100	1/8	1	2.75 in
612-300-050	1/8	1/2	3 in
612-350-050	1/8	1/2	3.5 in
612-400-062	1/8	5/8	4 in
612-450-050	1/8	1/2	4.5 in
612-500-050	1/8	1/2	5 in
612-500-075	1/8	3/4	5 in
612-200-037	1/8	3/8	2 in
612-200-062	1/8	5/8	2 in
612-200-075	1/8	3/4	2 in
612-225-050	1/8	1/2	2.25 in
612-250-062	1/8	5/8	2.5 in
612-250-075	1/8	3/4	2.5 in
612-300-037	1/8	3/8	3 in
612-300-075	1/8	3/4	3 in
612-350-037	1/8	3/8	3.5 in
612-350-075	1/8	3/4	3.5 in
612-375-050	1/8	1/2	3.75 in
612-450-075	1/8	3/4	4.5 in
612-500-100	1/8	1	5 in
612-600-037	1/8	3/8	6 in
612-600-050	1/8	1/2	6 in
612-600-062	1/8	5/8	6 in
612-700-050	1/8	1/2	7 in
612-400-050	1/8	1/2	4 in
