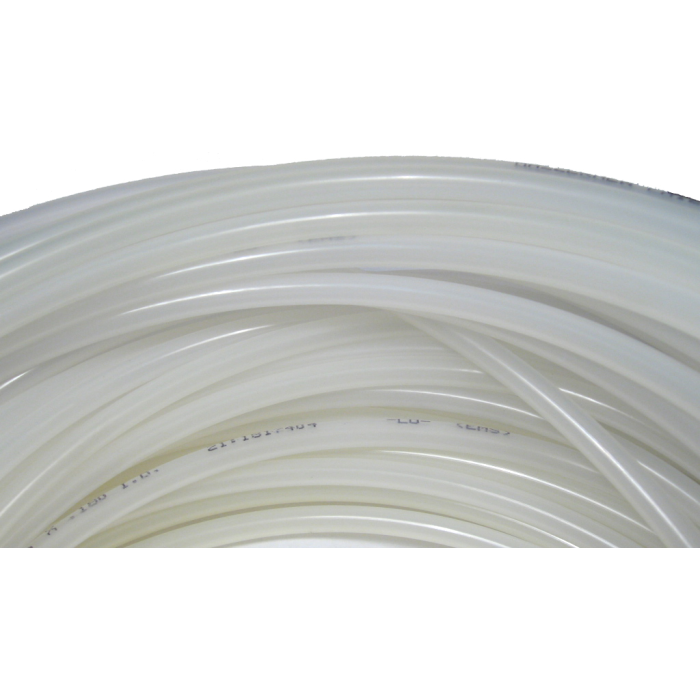

Nylon Tubing, 8.00 OD, 1.00 Thick, 6.00 ID, Up To 250.00 PSI

Burst Pressure 1000	Color Natural	Brand Freelinwade	Brand Freelinwade	Pack Size 12.00	UOM FT	I.D. 6 mm	Maximum Operating Pressure 250	Minimum Bend Radius 38	Minimum Bend Radius 38	O.D. 8 mm	Package Qty. 100	Supplier Part Number 1J-243-10	Wall Thickness 1	Alternate Part Numbers Alternate Part Number C1MM43	Product Weight 0.03 lbs

Product Questions & Answers 1

Product Questions & Answers

tubing rated for anything other than air? got a coolant line on a machine tool setup that runs pretty warm and i need something that won't go soft on me

Question by: Earl T on Mar 12, 2026, 9:25 PM

Coolant lines are a solid fit for this tubing. It handles machine tool coolant along with oils, lubricants, fuel, and a range of general chemicals. The temperature ceiling is 200 degrees F, so as long as your coolant line stays under that, you won't see softening or deformation under normal operating conditions. Pressure-wise, the working limit is 250 PSI with a burst rating of 1000 PSI, which gives you a comfortable safety margin for most machine tool setups.

Answer by: Customer Support on Mar 14, 2026, 4:09 PM

Similar Products

Model Number	O.D.	Wall Thickness	I.D.	Minimum Bend Radius	Color	Maximum Operating Pressure	Burst Pressure	Package Qty.
1J-202-10	0.188 in	0.025	0.138 in	0.625	Natural	260	1040	100
1J-204-01	0.25 in	0.035	0.18 in	1	Black	290	1160	100
1J-204-10	0.25 in	0.035	0.18 in	1	Natural	290	1160	100
1J-205-10	0.312 in	0.04	0.232 in	1.5	Natural	240	960	100
1J-206-10	0.375 in	0.05	0.275 in	1.5	Natural	250	1000	100
1J-207-10	0.5 in	0.062	0.375 in	2.25	Natural	240	960	100
1J-242-10	6 mm	0.65	2.7 mm	17	Natural	340	1360	100
1J-243-10	8 mm	1	6 mm	38	Natural	250	1000	100
1J-244-10	10 mm	1	8 mm	51	Natural	190	760	100
1J-245-10	12 mm	1	10 mm	76	Natural	150	600	100
1J-247-10	0.125 in	0.023	0.08 in	0.375	Natural	420	1680	100
