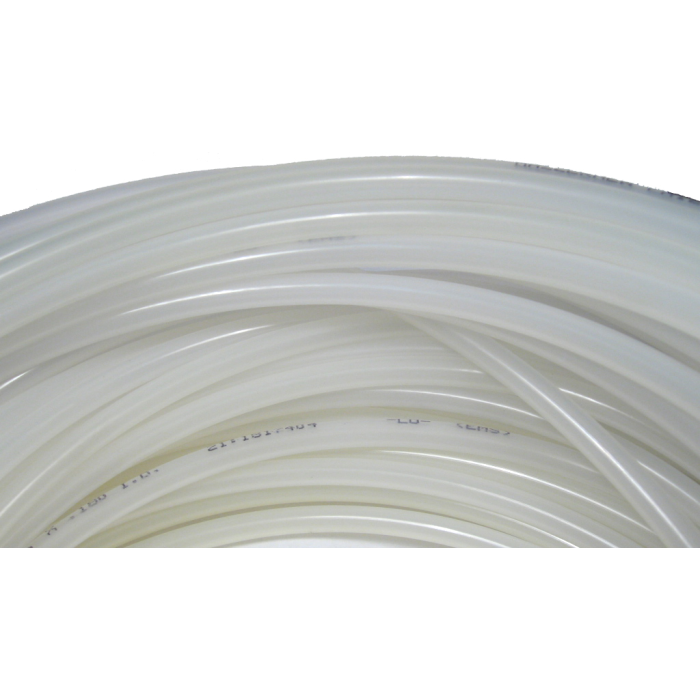

Nylon Tubing, 6.00 OD, 0.65 Thick, 2.70 ID, Up To 340.00 PSI

Burst Pressure 1360	Color Natural	Brand Freelinwade	Brand Freelinwade	Pack Size 12.00	UOM FT	I.D. 2.7 mm	Maximum Operating Pressure 340	Minimum Bend Radius 17	Minimum Bend Radius 17	O.D. 6 mm	Package Qty. 100	Supplier Part Number 1J-242-10	Wall Thickness 0.65	Alternate Part Numbers Alternate Part Number C1MM42	Product Weight 0.03 lbs

Product Questions & Answers 1

Product Questions & Answers

i’ve got a tight spot to route line, how sharp can this 6mm nylon tubing bend without kinking?

Question by: Hugh W on Jul 28, 2025, 9:03 AM

For tight routing, the minimum bend radius on this tubing is 17 mm. Staying at or above that bend radius helps keep the tube from flattening out when you turn a corner.

Answer by: Customer Support on Jul 30, 2025, 6:16 AM

Similar Products

Model Number	O.D.	Wall Thickness	I.D.	Minimum Bend Radius	Color	Maximum Operating Pressure	Burst Pressure	Package Qty.
1J-202-10	0.188 in	0.025	0.138 in	0.625	Natural	260	1040	100
1J-204-01	0.25 in	0.035	0.18 in	1	Black	290	1160	100
1J-204-10	0.25 in	0.035	0.18 in	1	Natural	290	1160	100
1J-205-10	0.312 in	0.04	0.232 in	1.5	Natural	240	960	100
1J-206-10	0.375 in	0.05	0.275 in	1.5	Natural	250	1000	100
1J-207-10	0.5 in	0.062	0.375 in	2.25	Natural	240	960	100
1J-242-10	6 mm	0.65	2.7 mm	17	Natural	340	1360	100
1J-243-10	8 mm	1	6 mm	38	Natural	250	1000	100
1J-244-10	10 mm	1	8 mm	51	Natural	190	760	100
1J-245-10	12 mm	1	10 mm	76	Natural	150	600	100
1J-247-10	0.125 in	0.023	0.08 in	0.375	Natural	420	1680	100
