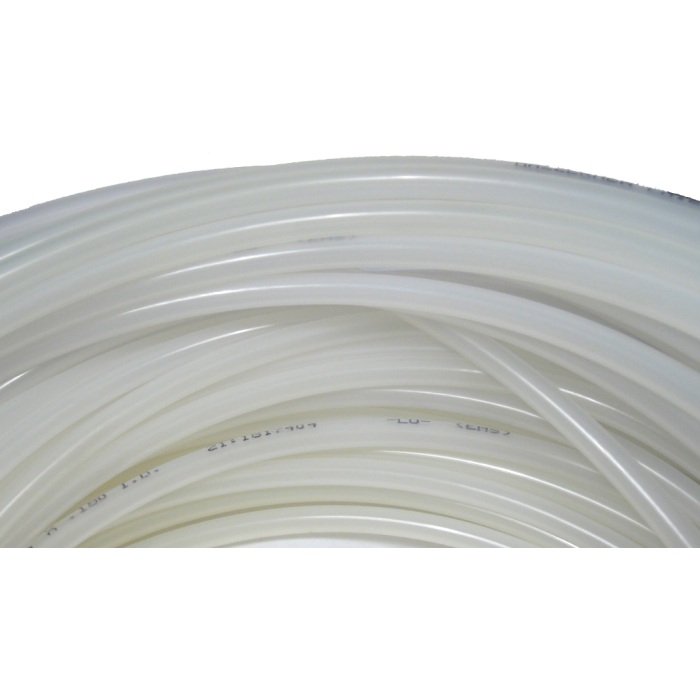

Nylon Tubing, 0.50 OD, 0.06 Thick, 0.38 ID, Up To 240.00 PSI

Ask A Question
Burst Pressure
960
Color
Natural
Brand
Freelinwade
Brand
Freelinwade
Pack Size
12.00
UOM
FT
I.D.
0.375 in
Maximum Operating Pressure
240
Minimum Bend Radius
2.25
Minimum Bend Radius
2.25
O.D.
0.5 in
Package Qty.
100
Supplier Part Number
1J-207-10
Wall Thickness
0.06
Alternate Part Numbers
Alternate Part Number C1MM41, Alternate Part Number MI-02706818, Alternate Part Number MINO-00326J30895
Product Weight
0.08 lbs
Product Questions & Answers 2

Product Questions & Answers

tubing says it goes up to 240 PSI but whats the burst pressure on it? trying to figure out how much headroom we actually got before something lets go
Question by: Joyce M on Oct 22, 2025, 5:33 PM
Burst pressure on this tubing is rated at 960 PSI, which gives you a 4-to-1 safety margin over the 240 PSI working pressure. That kind of headroom is pretty standard for well-built pneumatic and hydraulic tubing and means you've got solid cushion if pressure spikes happen in your system.
Answer by: Customer Support on Oct 24, 2025, 6:45 AM
trying to snake this line around a tight spot, how sharp can i bend it without kinking it
Question by: Howard H on May 2, 2025, 4:29 PM
For routing around corners, the minimum bend radius is 2.25 inches. Staying at or above that bend radius is the safe way to keep it from kinking and to maintain flow through the 0.375 inch ID.
Answer by: Customer Support on May 4, 2025, 9:02 AM

Similar Products

Model Number O.D. Wall Thickness I.D. Minimum Bend Radius Color Maximum Operating Pressure Burst Pressure Package Qty. Price Buy Now
1J-202-10 0.188 in 0.025 0.138 in 0.625 Natural 260 1040 100
1J-204-01 0.25 in 0.035 0.18 in 1 Black 290 1160 100
1J-204-10 0.25 in 0.035 0.18 in 1 Natural 290 1160 100
1J-205-10 0.312 in 0.04 0.232 in 1.5 Natural 240 960 100
1J-206-10 0.375 in 0.05 0.275 in 1.5 Natural 250 1000 100
1J-207-10 0.5 in 0.062 0.375 in 2.25 Natural 240 960 100
1J-242-10 6 mm 0.65 2.7 mm 17 Natural 340 1360 100
1J-243-10 8 mm 1 6 mm 38 Natural 250 1000 100
1J-244-10 10 mm 1 8 mm 51 Natural 190 760 100
1J-245-10 12 mm 1 10 mm 76 Natural 150 600 100
1J-247-10 0.125 in 0.023 0.08 in 0.375 Natural 420 1680 100
