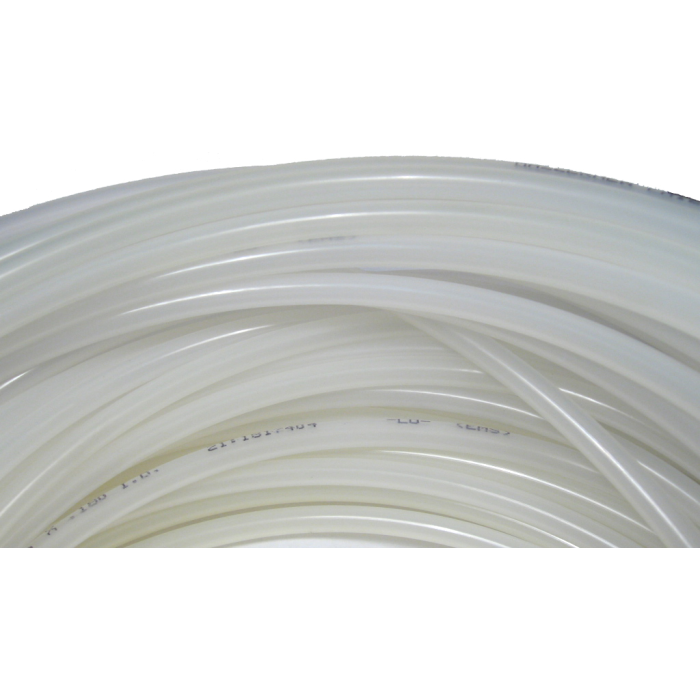

Nylon Tubing, 0.31 OD, 0.04 Thick, 0.23 ID, Up To 240.00 PSI

Burst Pressure 960	Color Natural	Brand Freelinwade	Brand Freelinwade	Pack Size 12.00	UOM FT	I.D. 0.232 in	Maximum Operating Pressure 240	Minimum Bend Radius 1.50	Minimum Bend Radius 1.5	O.D. 0.312 in	Package Qty. 100	Supplier Part Number 1J-205-10	Wall Thickness 0.04	Alternate Part Numbers Alternate Part Number C1MM39	Product Weight 0.04 lbs

Product Questions & Answers 3

Product Questions & Answers

What kind of stuff is this tubing good for resistin', like chemicals and whatnot?

Question by: Neal L on Apr 20, 2025, 3:30 PM

This nylon tubing shows good resistance to corrosion because it doesn't soak up moisture easily. It also handles chemicals, lubricants, and oils pretty well, so it's a solid pick for those environments.

Answer by: Customer Support on Apr 22, 2025, 7:04 AM

trying to run a tight loop in a cabinet, how sharp can i bend this 5/16 nylon tube without kinkin it

Question by: Debbie P on Jun 24, 2025, 7:46 PM

For tight routing, the minimum bend radius on this tubing is 1.5 inches. Staying at or above that bend radius helps it keep its shape and flow without collapsing.

Answer by: Customer Support on Jun 26, 2025, 7:42 AM

tubing rated for hydraulic use or just pneumatics? trying to figure out if 240 psi is gonna cut it for what we got running

Question by: Lance M on Feb 22, 2026, 6:15 AM

Hydraulic, pneumatic, and vacuum systems all fall within the rated applications for this tubing. The maximum operating pressure is 240 PSI, with a burst pressure of 960 PSI. Whether that working pressure fits your system depends on what you're running, but those are the confirmed ratings for this product.

Answer by: Customer Support on Feb 24, 2026, 6:19 AM

Similar Products

Model Number	O.D.	Wall Thickness	I.D.	Minimum Bend Radius	Color	Maximum Operating Pressure	Burst Pressure	Package Qty.
1J-202-10	0.188 in	0.025	0.138 in	0.625	Natural	260	1040	100
1J-204-01	0.25 in	0.035	0.18 in	1	Black	290	1160	100
1J-204-10	0.25 in	0.035	0.18 in	1	Natural	290	1160	100
1J-205-10	0.312 in	0.04	0.232 in	1.5	Natural	240	960	100
1J-206-10	0.375 in	0.05	0.275 in	1.5	Natural	250	1000	100
1J-207-10	0.5 in	0.062	0.375 in	2.25	Natural	240	960	100
1J-242-10	6 mm	0.65	2.7 mm	17	Natural	340	1360	100
1J-243-10	8 mm	1	6 mm	38	Natural	250	1000	100
1J-244-10	10 mm	1	8 mm	51	Natural	190	760	100
1J-245-10	12 mm	1	10 mm	76	Natural	150	600	100
1J-247-10	0.125 in	0.023	0.08 in	0.375	Natural	420	1680	100
