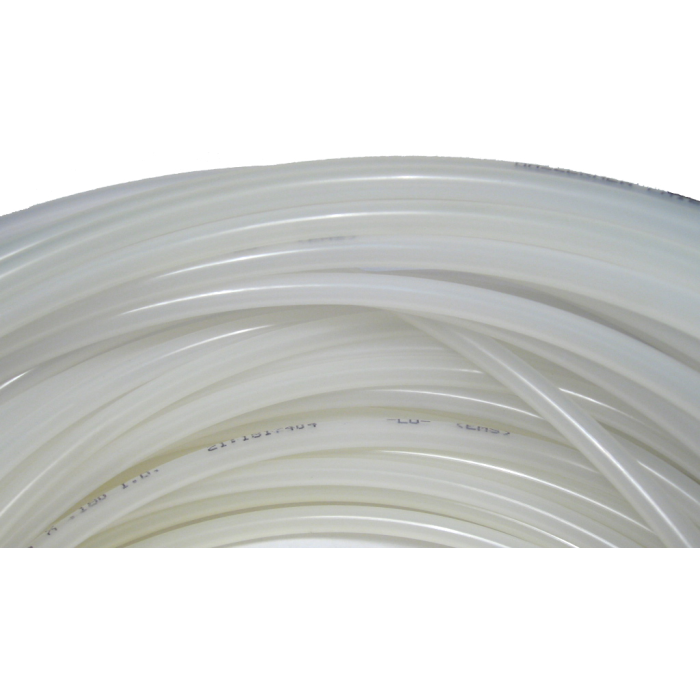

Nylon Tubing, 0.19 OD, 0.03 Thick, 0.14 ID, Up To 260.00 PSI

Burst Pressure 1040	Color Natural	Brand Freelinwade	Brand Freelinwade	Pack Size 12.00	UOM FT	I.D. 0.138 in	Maximum Operating Pressure 260	Minimum Bend Radius 0.63	Minimum Bend Radius 0.625	O.D. 0.188 in	Package Qty. 100	Supplier Part Number 1J-202-10	Wall Thickness 0.03	Alternate Part Numbers Alternate Part Number C1MM36	Product Weight 0.02 lbs

Product Questions & Answers 3

Product Questions & Answers

What kind of temperatures can this nylon tubing handle?

Question by: Gary E on Mar 20, 2026, 8:48 PM

This tubing is rated for use between -60°F and 200°F.

Answer by: Customer Support on Mar 22, 2026, 5:13 PM

tubing rated for fuel lines? got a small machine runs diesel and need something that won't swell up on me

Question by: Ralph S on Apr 18, 2025, 4:29 PM

Fuel is listed among the confirmed compatible applications for this tubing, along with oils, lubricants, and general chemicals. The nylon construction resists moisture absorption and holds up well against chemical exposure, which helps prevent swelling and degradation over time. Max operating pressure is 260 PSI, so as long as your system stays within that range, you should be in good shape.

Answer by: Customer Support on Apr 20, 2025, 6:30 AM

got a tight spot to snake this line through, how tight can i bend it without kinking?

Question by: Ray H on Jul 25, 2025, 7:34 PM

For tight routing, the minimum bend radius is 0.625 inches. Staying at or above that radius helps it flex without putting a hard crease in the tubing.

Answer by: Customer Support on Jul 26, 2025, 9:47 PM

Similar Products

Model Number	O.D.	Wall Thickness	I.D.	Minimum Bend Radius	Color	Maximum Operating Pressure	Burst Pressure	Package Qty.
1J-202-10	0.188 in	0.025	0.138 in	0.625	Natural	260	1040	100
1J-204-01	0.25 in	0.035	0.18 in	1	Black	290	1160	100
1J-204-10	0.25 in	0.035	0.18 in	1	Natural	290	1160	100
1J-205-10	0.312 in	0.04	0.232 in	1.5	Natural	240	960	100
1J-206-10	0.375 in	0.05	0.275 in	1.5	Natural	250	1000	100
1J-207-10	0.5 in	0.062	0.375 in	2.25	Natural	240	960	100
1J-242-10	6 mm	0.65	2.7 mm	17	Natural	340	1360	100
1J-243-10	8 mm	1	6 mm	38	Natural	250	1000	100
1J-244-10	10 mm	1	8 mm	51	Natural	190	760	100
1J-245-10	12 mm	1	10 mm	76	Natural	150	600	100
1J-247-10	0.125 in	0.023	0.08 in	0.375	Natural	420	1680	100
