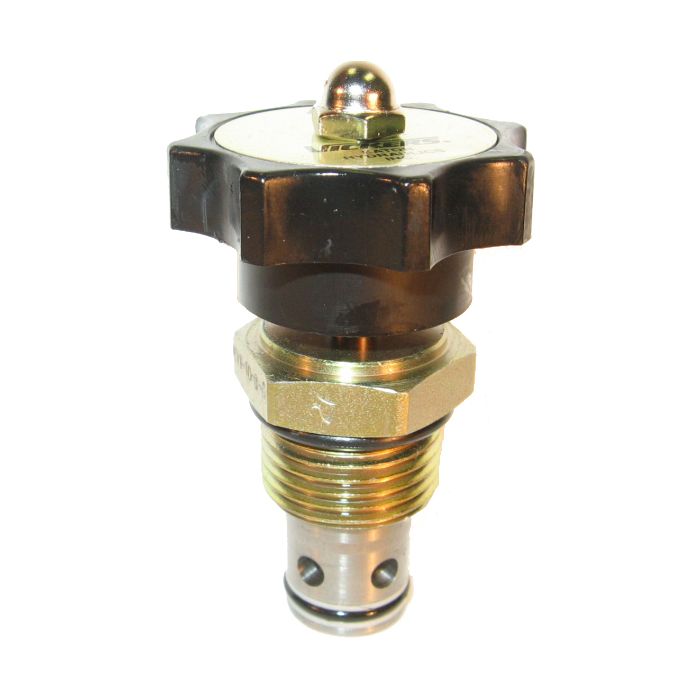

NV1-10 Series Needle Cartridge Valves, Up To 3000 PSI & 12 GPM
Application |
Controlled flow in both directions. |
Cartridge |
Model NV1-10*, sold separately. |
Features |
Cartridge style (Requires a machined cavity or housing for installation). Rotary knob. |
Flow Rating |
12 GPM. |
Housing |
Cavity size C-10-2, sold separately, see |
Maximum Operating Pressure |
3000 PSI. |
Recommended Filtration |
ISO 4406 Cleanliness Level 18/16/13 or cleaner. |
Temperature Range |
-40°F to 248°F (Extreme Limits). |
Products
| Part Number | Model Number | Color | Housing | Seal Material | Price | Buy Now |
|---|---|---|---|---|---|---|
| 565590 | NV1-10-K-0 | Black | None | Buna-N |
|
