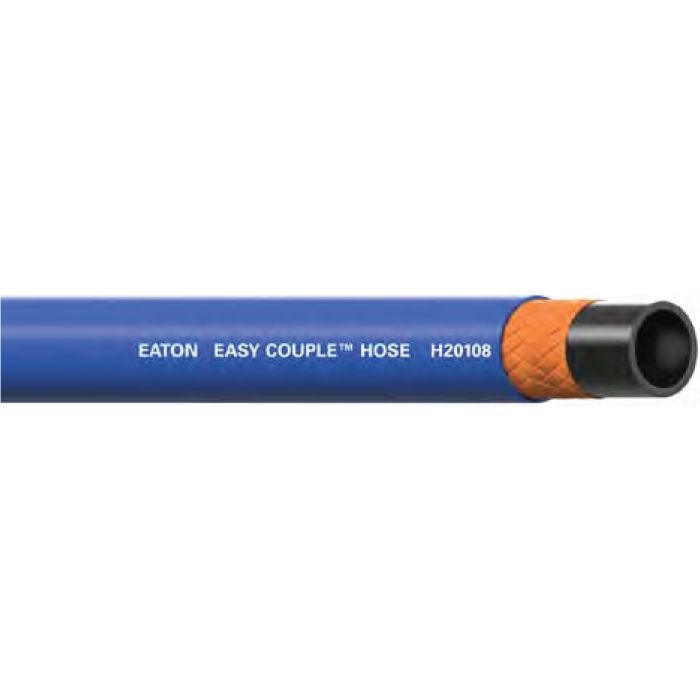

Easy Couple Air & Multipurpose Socketless Hose

Application	Pneumatic tools on production line. Convey air, water, oils, etc. Transfer lubricated air to valves and cylinders. Low pressure hydraulics (NOT for impulse applications). Please review application requirements and limitations found in
Branding Type	Ink Print.
Construction	RMA Class A vinyl nitrile tube (Excellent oil resistance). 1-braid textile reinforcement. Black cover is neoprene (MSHA 2G-13). Blue, Gray, Red, Yellow and Green covers are vinyl nitrile.
Fitting Attachment	Pinch Clamps. Band-It Jr Preformed Clamps. Bolt Clamps
Fittings	Shank Type (Brass, Steel, Stainless Steel). Universal Type
Fittings & Fitting Attachment Suggestions	SOCKETLESS™ fittings (no clamp required). Shank or Universal type fittings attached with pinch clamps, preformed clamps or bolt clamps.
Temperature Range	Air applications: -40°F to 160°F. Water applications: -40°F to 185°F. Fuel and lubrication oil: -40°F to 260°F.

Products

Model Number	Color	Hose I.D.	Hose O.D.	Maximum Operating Pressure	Minimum Bend Radius	Vacuum Service	Reel Qty (ft)
H20104BK-250R	Black	0.25	0.5	250	3	28	250
H20112BK-250R	Black	0.75	1.0625	250	7	28	250
H20104RD-250R	Red	0.25	0.5	250	3	250
H20110BK-250R	Black	0.625	0.9375	250	6	28	250
