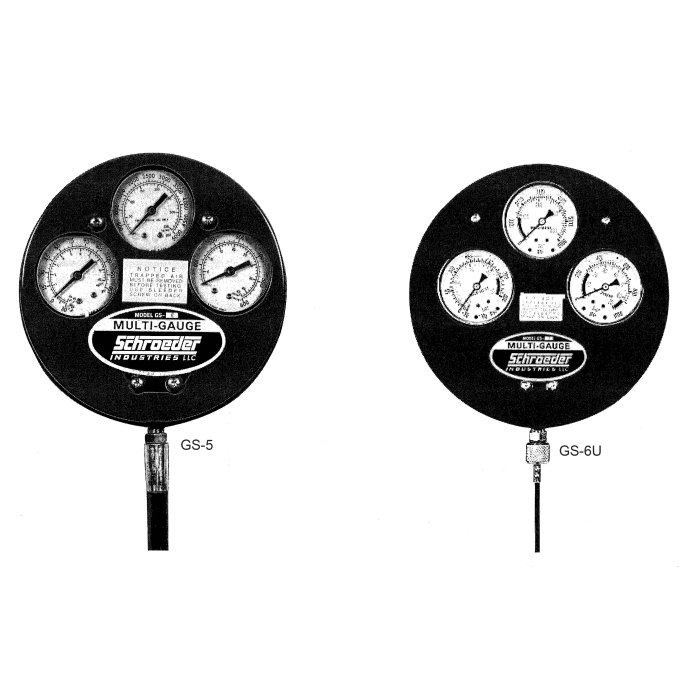

Multi-Gauge, Case: 6.3, Gauge: 1.5 Inch Diameter, Gauge 1: 0 to 600 psi, Gauge 2: 0 to 5000 psi, Vacuum: 30 in Hg to 150 psi

Diameter (in)
Case: 6.3, Gauge: 1.5
Brand
Schroeder Industries
Brand
Schroeder Industries
Pack Size
1.00
UOM
EA
Pressure Range (psi)
Gauge 1: 0 to 600 psi, Gauge 2: 0 to 5000 psi, Vacuum: 30 in Hg to 150 psi
Supplier Part Number
7630379
Alternate Part Numbers
Alternate Part Number C1LZ84
Product Weight
3.25 lbs

Product Questions & Answers

got a hydraulic setup that swings from vacuum to pressure depending on what it’s doing. would this gauge cover that without me swapping tools around
Question by: Randy C on Feb 27, 2026, 11:02 AM
For routine hydraulic maintenance, it gives you four readings in one case: vacuum from 30 in Hg up to 150 psi, plus 0 to 600 psi and 0 to 5000 psi. One hook-up connects all three gauges at the same time, so you can check vacuum, low pressure, and high pressure without changing instruments.
Answer by: Customer Support on Feb 28, 2026, 7:19 PM
Does this thing actually protect the low-pressure gauge if you hook it up to a high-pressure system without knowin what the pressure is ahead of time?
Question by: Kurt F on Oct 16, 2025, 4:48 PM
Built into the unit is an automatic gauge protector that shields the low and medium pressure gauges from high-pressure spikes. So if you connect to a 2500 psi system while the low-range gauge is still live, it won't get damaged. You don't have to figure out system pressure before you hook up, which is the whole point of that feature.
Answer by: Customer Support on Oct 17, 2025, 7:54 PM

Similar Products

Model Number Diameter (in) Pressure Range (psi) Price Buy Now
GS-5 Case: 6.3, Gauge: 1.5 Gauge 1: 0 to 600 psi, Gauge 2: 0 to 5000 psi, Vacuum: 30 in Hg to 150 psi
