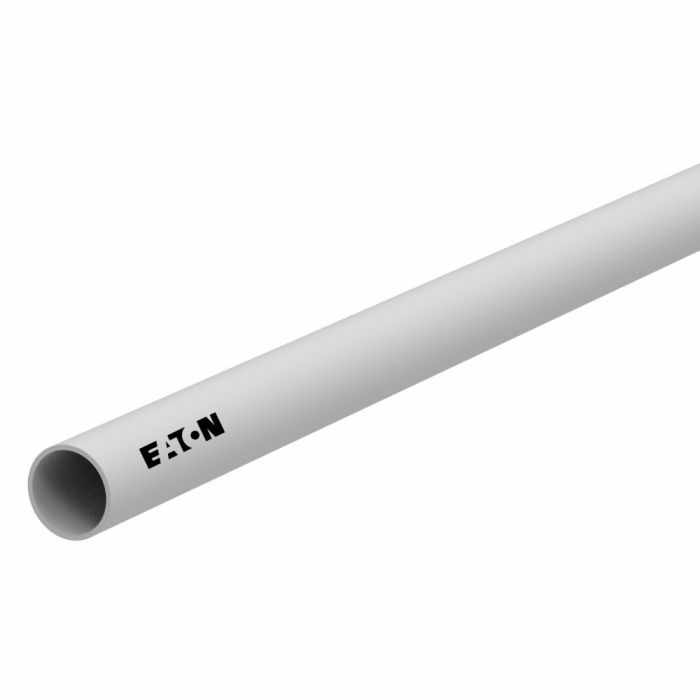

MTP160 tubing MTP16012NA-100

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number C1KM80	Application Resistant to most chemicals and hydrocarbons.	Color Natural	Conductivity 30	Construction Extruded	Cover Material Polyamide	Dash Size -12	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 12.00	UOM FT	Features UV resistance last longer than all competitors\|Hundreds of styles to choose from\|Rugged enough to stand up to the toughest applications	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 3.50	Minimum Bend Radius 3.5	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.47	Qualified Hose Fittings Push to Connect	Reinforcement Material Polyamide	Sub Brand Weatherhead	Supplier Part Number MTP16012NA-100	Tube Material Polyamide	Product Weight 0.13 lbs

Product Questions & Answers 3

Product Questions & Answers

Does this tubing hold up alright when it's getting beat on regular, like in a setup where it's rubbing against other components pretty much all day?

Question by: Debbie E on May 11, 2025, 1:55 PM

Premium abrasion resistance is one of the stronger selling points on this tubing. The polyamide construction handles rough contact and tough working conditions better than a lot of comparable products out there. It's built for demanding environments, so regular friction from nearby components is well within what it's rated to handle.

Answer by: Customer Support on May 13, 2025, 6:31 AM

What's the smallest circle this tubing can bend around without kinking?

Question by: Jimmy A on Apr 4, 2026, 3:04 PM

The minimum bend radius for the MTP160 tubing is 3.5 inches.

Answer by: Customer Support on Apr 6, 2026, 2:03 PM

got a tight spot to route this line, how sharp can i bend the MTP160 without kinking it

Question by: Randy R on Apr 14, 2025, 11:48 AM

Minimum bend radius on the MTP160 tubing is 3.5 inches, so you will want to keep your routing at or above that radius when you lay it in.

Answer by: Customer Support on Apr 16, 2025, 6:32 AM
