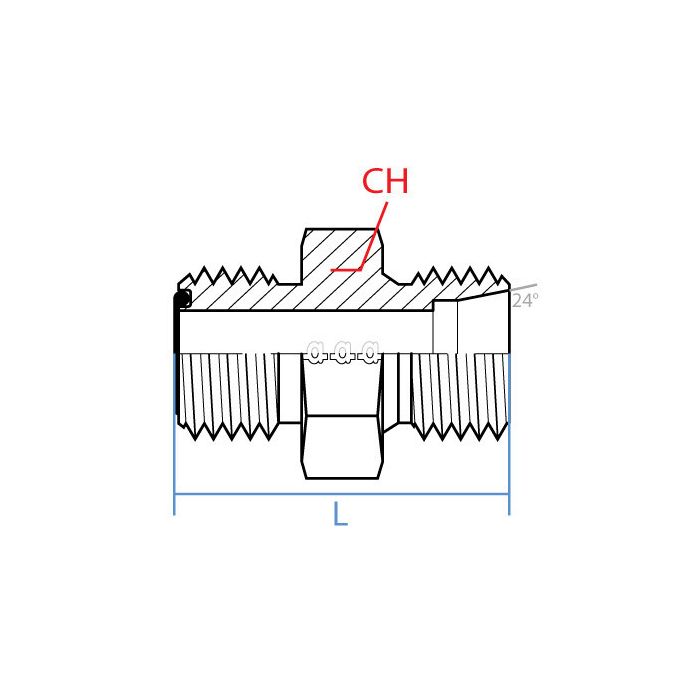

Morfs X Male Din Tube Or Port

CH Width
24mm
L Length
34.3mm
Adaptall Material
Steel
Adaptall Shape
Straight
Side 1 Callout
11/16 - 16 UN
Side 1 Gender
M
Side 1 Size
3/8"
Side 1 Type
Orfs
Side 2 Callout
M18 X 1.5
Side 2 Gender
M
Side 2 Size
L12
Side 2 Type
Din Tube
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
6605-06-L12-18
Product Weight
0.12 lbs

Product Questions & Answers

Will this here fitting hold up okay in a hydraulic setup on my backhoe?
Question by: Glen H on Mar 14, 2026, 7:16 AM
Designed for hydraulic applications, this adapter ensures a secure and leak-free connection between an ORFS fitting and a DIN tube fitting.
Answer by: Customer Support on Mar 15, 2026, 1:53 PM
got a hose end that’s 3/8 ORFS, will this screw right onto it and then go into an M18 x 1.5 DIN tube port?
Question by: Judy C on Feb 11, 2026, 6:53 AM
For tying those two standards together, it matches a 3/8 inch male ORFS end (11/16-16 UN) on one side and a male DIN tube end called out as M18 x 1.5, size L12, on the other. It’s a straight steel adapter meant to make that ORFS to DIN tube connection.
Answer by: Customer Support on Feb 13, 2026, 8:08 AM
