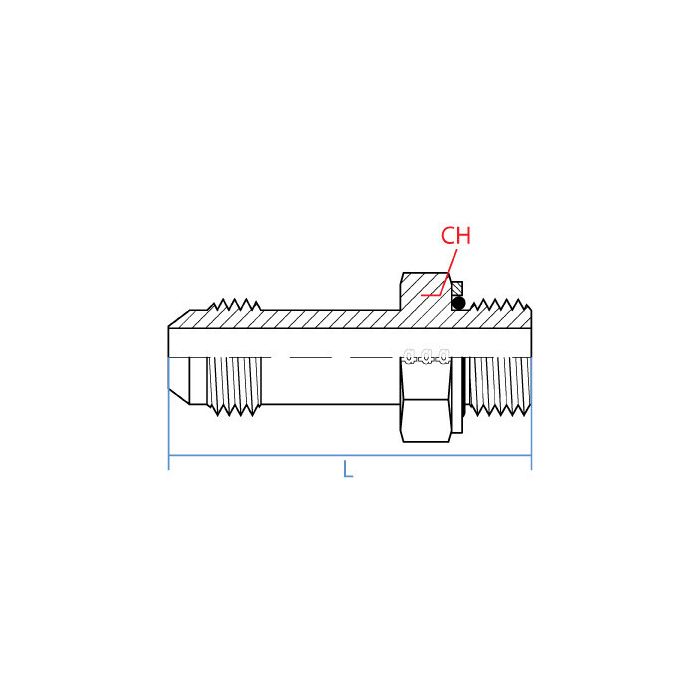

Mjic X Mbspp Long

CH Width
27mm
L Length
77mm
Adaptall Material
Steel
Adaptall Shape
Straight
Side 1 Callout
7/8 - 14 UNF
Side 1 Gender
M
Side 1 Size
5/8"
Side 1 Type
Jic
Side 2 Callout
G 1/2 - 14
Side 2 Gender
M
Side 2 Size
1/2"
Side 2 Type
Bspp
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9002L-10-08
Product Weight
0.35 lbs

Product Questions & Answers

Will this adapter hold up alright for connecting hydraulic lines on my tractor?
Question by: Jimmy M on Dec 7, 2025, 8:36 AM
Designed for connecting JIC and BSPP hydraulic lines, this steel adapter should work well on a tractor where you need to adapt those thread types.
Answer by: Customer Support on Dec 8, 2025, 8:46 PM
got a hose end that’s 7/8-14 UNF male JIC, will this adapter mate up on that side?
Question by: Hubert E on Nov 18, 2025, 5:22 PM
On the JIC end, it matches a 5/8 inch Male JIC with 7/8-14 UNF threads, so it’s set up to connect to the corresponding JIC counterpart for that size.
Answer by: Customer Support on Nov 20, 2025, 7:50 AM
Got a machine that needs a JIC line tied into a BSPP port but there ain't much room to work with angled fittings. Would a straight adapter with some extra length do the trick?
Question by: Warren F on Mar 22, 2026, 12:31 PM
Extra clearance is exactly what this one's built for. At 77mm long, it gives you more reach between mating ports than a standard-length adapter would, so if you're working in a tight bay where angled fittings just complicate things, a straight inline connection like this keeps it clean. One end is 5/8" Male JIC on a 7/8-14 UNF thread, the other is 1/2" Male BSPP on a G 1/2-14 thread. As long as those are your two thread standards, this adapter connects them directly without any bends or transitions in between.
Answer by: Customer Support on Mar 24, 2026, 6:04 AM
