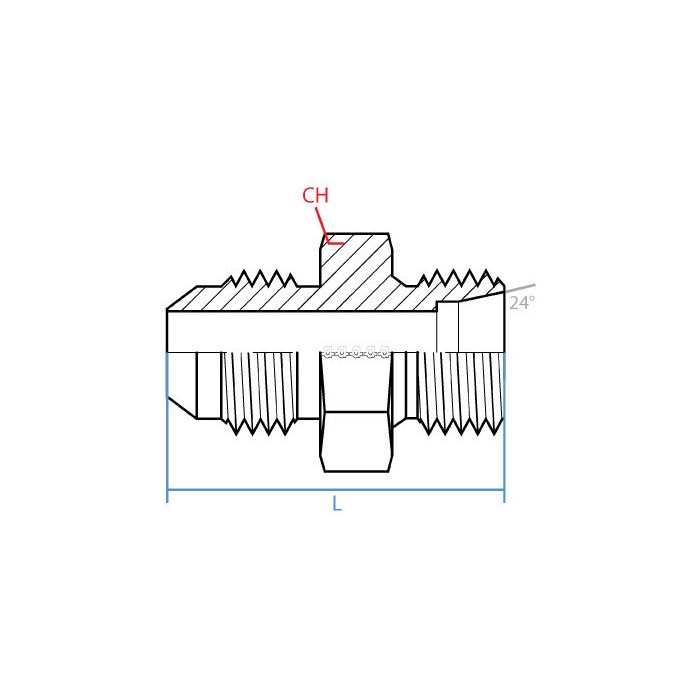

Adaptall Mjic X Male Metric Tube & Port 9605-12-L22-30X1.5

Specifications

CH Width 38mm	L Length 52.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M30 X 1.5	Side 2 Gender M	Side 2 Size L22 SPECIAL	Side 2 Type Kobelco	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9605-12-L22-30X1.5	Product Weight 0.45 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this here fitting work with a standard JIC setup on one side and a Kobelco connection on the other? Gotta make sure it'll fit right before I order.

Question by: Cody F on Nov 3, 2025, 8:33 PM

this straight steel adapter is made to go between a JIC end and a Kobelco end. The JIC side is a 3/4" size with a 1-1/16 - 12 UN callout and male gender, while the Kobelco side is a L22 SPECIAL size with a M30 X 1.5 callout, also male.

Answer by: Customer Support on Nov 5, 2025, 10:40 AM

Got a Kobelco machine that needs a new adapter and the port is M30 X 1.5 metric thread on the equipment side. Will this thing mate up on the JIC end to a 1-1/16 - 12 UN fitting?

Question by: Lance R on Sep 27, 2025, 7:40 AM

Both ends on this adapter are male, so keep that in mind when planning your connection. The JIC side is 3/4" with a 1-1/16 - 12 UN thread, and the Kobelco side is the L22 Special with an M30 X 1.5 thread. As long as your equipment port and your JIC fitting are female on both ends, you got yourself a match.

Answer by: Customer Support on Sep 28, 2025, 8:29 PM

trying to swap an adapter on a hose, is this one 3/4 JIC on one end and M30 x 1.5 on the other?

Question by: Todd H on Jun 7, 2025, 10:08 AM

On the JIC side it is a 3/4 inch male with a 1-1/16 - 12 UN thread callout. The other end is a Kobelco L22 SPECIAL male with an M30 x 1.5 thread callout.

Answer by: Customer Support on Jun 9, 2025, 6:59 AM
