Adaptall Mjic X Bsp Banjo 423409

Specifications

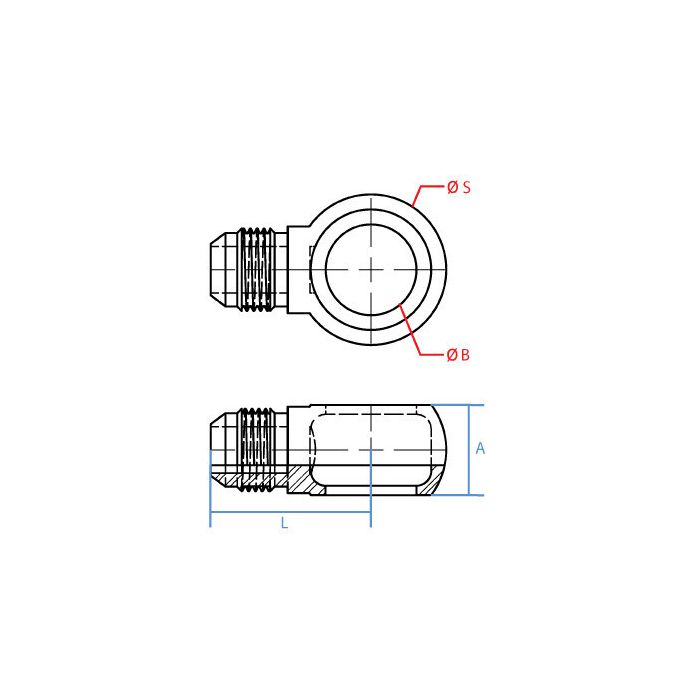

A Misc 10mm	B Misc 1/8	L Length 25mm	Adaptall Material Steel	S Misc 17mm	Adaptall Shape 90° Elbow	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Callout G 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 3059-04-02	Product Weight 0.02 lbs

Product Questions & Answers 3

Product Questions & Answers

trying to swap a line over, is this the banjo elbow that goes from 1/4 JIC male to 1/8 BSPP male?

Question by: Neil E on Jul 10, 2025, 9:29 AM

It’s a 90 degree banjo style elbow with a 7/16-20 UNF, 1/4 inch JIC male on Side 1 and a G 1/8-28, 1/8 inch BSPP male on Side 2, so it matches that JIC-to-BSPP male combination.

Answer by: Customer Support on Jul 12, 2025, 7:16 AM

fitting's only 25mm long, will that be enough thread engagement on the BSPP side for a secure connection?

Question by: Kurt P on Dec 7, 2025, 6:59 PM

At 25mm total length with a G 1/8-28 BSPP male end, thread engagement follows standard 1/8" BSPP specs, so as long as your port is clean and properly tapped to G 1/8-28, you'll get a solid, leak-resistant connection. The compact length is intentional for tight-clearance installations where a longer body just won't fit.

Answer by: Customer Support on Dec 9, 2025, 6:28 PM

Will this fitting hold up if I'm using it outside in all kinds of weather?

Question by: Cheryl P on Nov 2, 2025, 9:42 AM

Constructed from steel, this Adaptall fitting is designed for durability in demanding hydraulic applications.

Answer by: Customer Support on Nov 3, 2025, 4:02 PM
