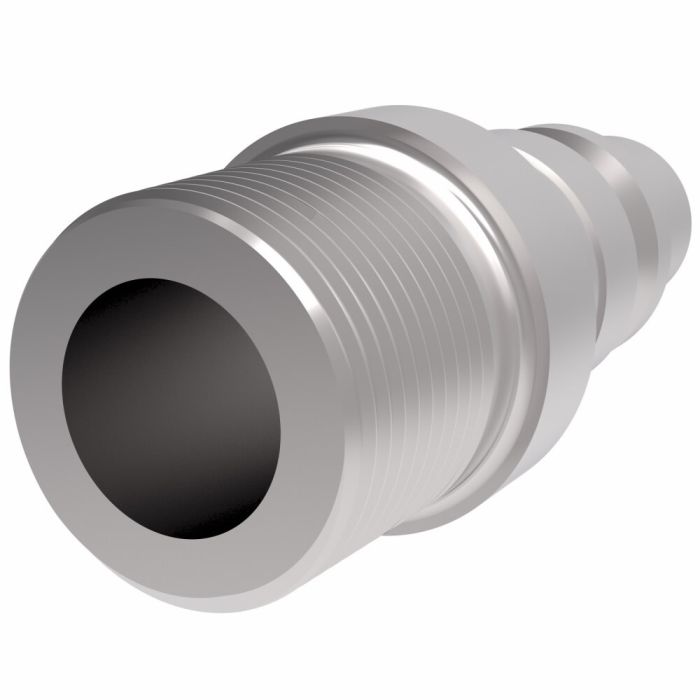

1000/400/500 Series MIL-C-4109 Industrial Interchange Air Quick Disconnect, Male Half, -08 Coupling, 1/2-14 Male NPT

A 2.44	Application General Pneumatics, Construction, Industrial Plants	Coupling Size -08	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13554	End Gender 2 13556	End Size 1 0.50	End Size 2 0.50	End Type 1 Push to Connect	End Type 2 NPTF	Minimum Working Temperature -40	Safety locking Mechanism Sleeve lock	Seal Material Buna-N	Supplier Part Number 54E	Thread 1 1/2-14	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1LX40, Alternate Part Number MI-05863489, Alternate Part Number MINO-00402X10023	Product Weight 0.16 lbs

Product Questions & Answers 2

Product Questions & Answers

Does this male half swap out with the Aeroquip FD40 Series or am I gonna need an adapter to make it work?

Question by: Bobby M on Feb 1, 2026, 10:03 AM

No adapter needed. The FD40 Series is one of the direct interchanges for this coupling, along with the Aeroquip FD41 Series (Aro 210) and Parker Automotive male halves. The thread is 1/2-14 Male NPT, so as long as your mating connection matches that, you should be good to go right out of the box.

Answer by: Customer Support on Feb 3, 2026, 8:30 AM

Will this work with a standard air compressor setup? I'm using Aeroquip FD40 series stuff now.

Question by: Neal M on Dec 17, 2025, 5:38 PM

This Eaton / Aeroquip Hansen 500 Series plug is designed to interchange directly with Aeroquip FD40 Series couplings, as well as FD41 Series (Aro 210) and Parker (Automotive) male halves. It meets MIL-C-4109 standards for industrial interchangeability.

Answer by: Customer Support on Dec 19, 2025, 4:19 PM

Similar Products

Model Number	Coupling Size	Thread 1	A
10	-04	1/4-18	1.75
25500278	-08	1/2-14	2.48
40	-06	1/4-18	1.88
42	-06	3/8-18	1.88
54E	-08	1/2-14	2.44
DCP2502	-04	1/4-18	1.88
