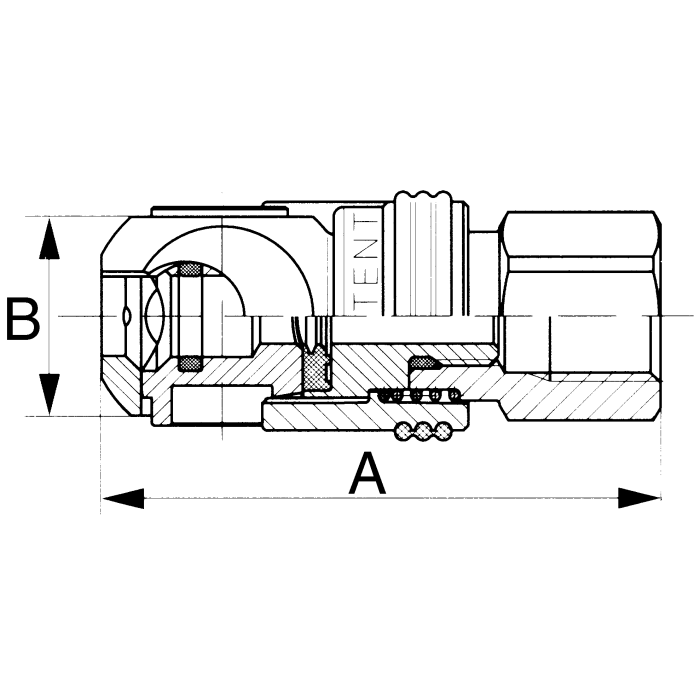

1000/400/500 Series MIL-C-4109 Industrial Interchange Air Swing Coupling, Female Half With Safety Vent, -08 Coupling, 1/2-14 Female NPT

A
3.31
B
1.38
Coupling Size
-08
Brand
RTC North America Ltd
Brand
RTC North America
Pack Size
1.00
UOM
EA
Seal Material
Buna-N
Supplier Part Number
R20500110
Thread 1
1/2-14
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1FF61, Alternate Part Number MI-07571894, Alternate Part Number MINO-00691X00144
Product Weight
0.93 lbs

Product Questions & Answers

How does this thing keep from gettin' snagged on stuff and disconnected by accident?
Question by: Janet E on Jan 30, 2026, 4:53 PM
A protective collar helps prevent accidental snagging and unintentional disconnection. Plus, it's got a pin latching mechanism for extra security.
Answer by: Customer Support on Feb 1, 2026, 6:45 AM
does this thing vent off the air pressure before it fully disconnects, or do you just get a blast of air when you pull it apart?
Question by: Lee E on Aug 30, 2025, 8:18 PM
Safe automatic venting of trapped air happens during the disconnect process, so you're not getting a sudden pressure release all at once. The swing coupling design lets you retract the release sleeve and swing the assembly to an angled position, which bleeds off the pressure in a controlled way before the halves fully separate. That's one of the main reasons this series gets used in air tool applications where you'd rather not have pressurized air kicking back at you every time you break a connection.
Answer by: Customer Support on Sep 1, 2025, 6:13 PM

Similar Products

Model Number Coupling Size Thread 1 Seal Material A B Price Buy Now
20500026 -06 3/8-18 Buna-N 2.79 0.94
20500110 -08 1/2-14 Buna-N 3.31 1.38
20500311 -04 1/4-18 Buna-N 2.54 0.79
