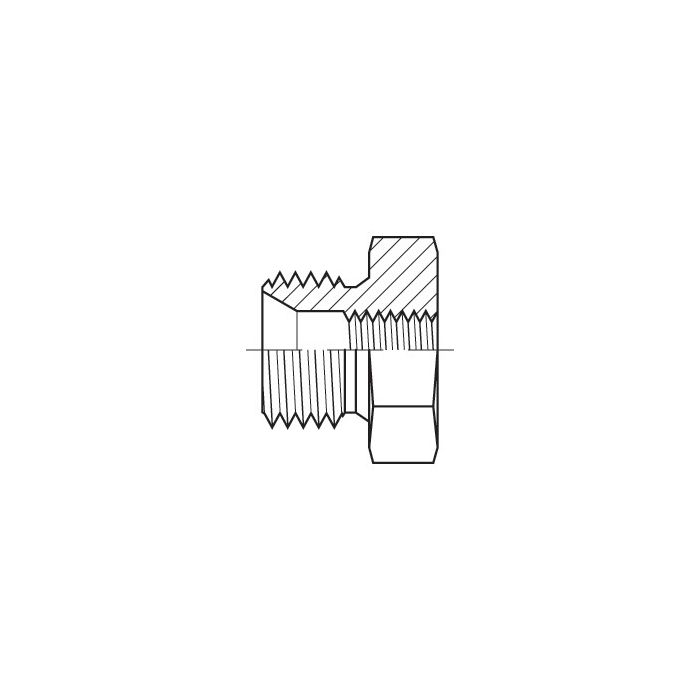

Adaptall Metric Port Bushing 9638-22X1.5-14X1.5

Specifications

CH Width 27mm	L Length 33.1mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M22 X 1.5	Side 1 Gender M	Side 1 Size 22mm	Side 1 Type Metric	Side 2 Callout M14 X 1.5	Side 2 Gender F	Side 2 Size 14mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9638-22X1.5-14X1.5	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

got a port that’s M22 x 1.5 but the part i need to screw in is M14 x 1.5. is this bushing the right way to step it down?

Question by: Harvey J on Jan 29, 2026, 2:05 PM

Built for that exact thread change, it has a male M22 x 1.5 on one end and a female M14 x 1.5 on the other, so it adapts an M22 x 1.5 port down to accept an M14 x 1.5 fitting.

Answer by: Customer Support on Jan 30, 2026, 7:51 PM

Will this here bushing hold up okay in a hydraulic setup on a farm tractor, ya think?

Question by: Merle H on Mar 15, 2026, 9:57 AM

Made from steel, this metric port bushing is plenty durable for hydraulic applications on farm equipment.

Answer by: Customer Support on Mar 17, 2026, 6:27 AM

Got a port on my hydraulic manifold that's M14 female and the line fitting I need to run is M22 male. This bushing work for that setup?

Question by: Glen K on Dec 10, 2025, 6:33 AM

Backwards from what you'd expect, but yes, that's exactly the situation this bushing handles. The M22 x 1.5 male end threads into your larger port, and the M14 x 1.5 female end on the other side accepts your smaller male fitting. Steel construction keeps it solid under the kind of pressure cycles you'd see in a working hydraulic system, and the straight profile means no awkward angles to deal with during installation.

Answer by: Customer Support on Dec 11, 2025, 9:18 PM
