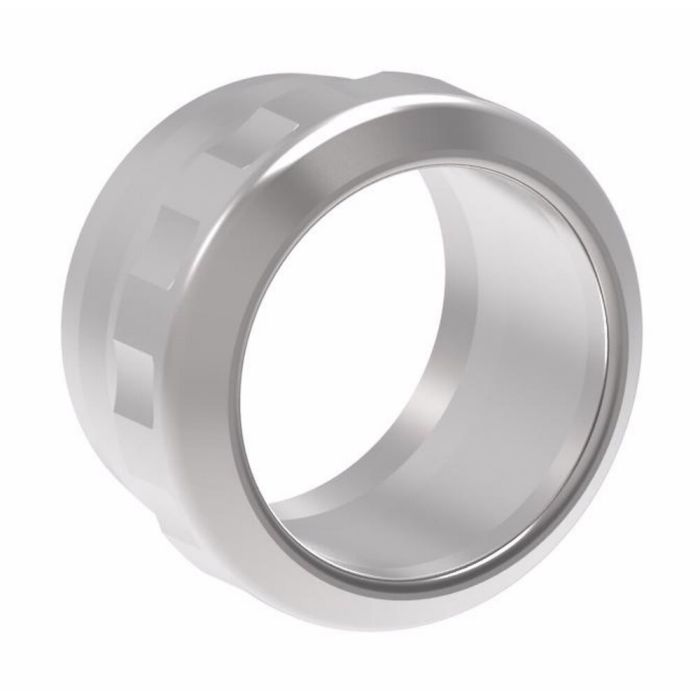

Steel Metric Flareless Fitting, 4.00 mm LL Series Profile Ring

Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	Maximum Operating Pressure 100	Series LL	Supplier Part Number WAL039862	Tube O.D. 4	Tube O.D. 4	Alternate Part Numbers Alternate Part Number C1KX26, Alternate Part Number MI-08752948, Alternate Part Number MINO-04854X96668	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

Wondering what kind of temps this fitting can handle?

Question by: Melvin M on Feb 22, 2026, 10:28 AM

This metric flareless fitting can handle temperatures up to 120°C.

Answer by: Customer Support on Feb 23, 2026, 1:10 PM

max operating pressure on this one is listed at 100 bar, but I saw something about Series S going up to 630, which number actually applies to this fitting?

Question by: Jean S on Jul 14, 2025, 11:34 AM

For this particular profile ring, the 100 bar figure is the maximum operating pressure. The Series S range of 160 to 630 bar applies to a different configuration within the broader product family, not to this LL series ring. So for your application planning, 100 bar is the number to work with here.

Answer by: Customer Support on Jul 16, 2025, 9:06 AM

got a 4 mm tube, will this profile ring actually match the LL series stuff or is that a different animal

Question by: Jean B on Nov 16, 2025, 9:12 AM

For an LL series metric flareless setup, this ring is the 4.00 mm size meant to go with 4 mm tube OD, and it follows DIN design and dimension standards.

Answer by: Customer Support on Nov 18, 2025, 6:01 AM

Similar Products

Model Number	Tube O.D.	Series	Maximum Operating Pressure
WAL372405	8	L	500
WAL372406	10	L	500
WAL372415	16	S	630
WAL372417	25	S	420
WAL372418	30	S	420
WAL039862	4	LL	100
WAL372404	6	L	500
WAL372407	12	L	400
WAL372408	15	L	400
WAL372409	18	L	400
WAL372410	22	L	250
WAL372411	28	L	250
WAL372416	20	S	420
