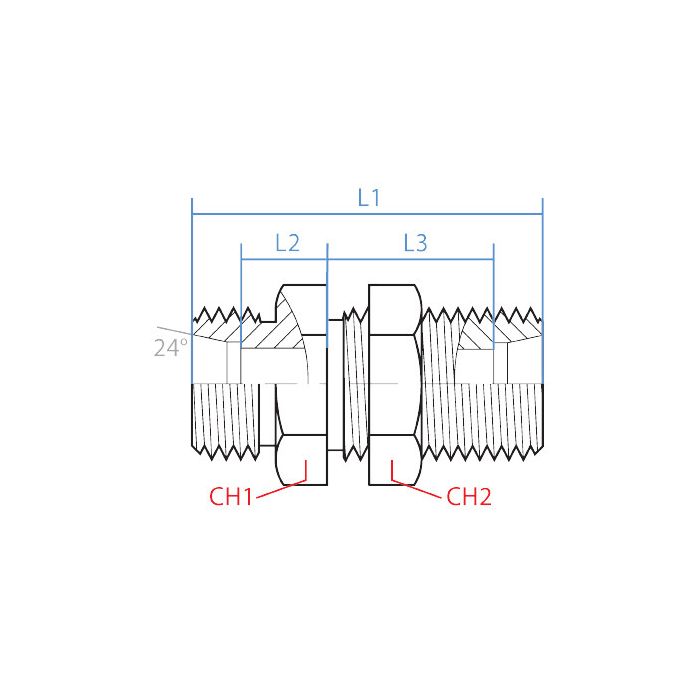

Adaptall Metric Din Bulkhead-Male Bspp 5040-L10-06ESX

Specifications

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M16 X 1.5	Side 1 Gender M	Side 1 Size L10	Side 1 Type Din Tube	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 5040-L10-06ESX	Product Weight 0.13 lbs

Product Questions & Answers 3

Product Questions & Answers

got a bulkhead port and need to go from M16 x 1.5 DIN tube to a 3/8 BSPP, is that what this adapter does?

Question by: Daryl M on May 27, 2025, 7:22 AM

For a bulkhead pass-through, it mates an M16 x 1.5 DIN tube thread on one side to a G 3/8 - 19 BSPP male thread on the other. Both ends are male, and the body is a straight steel fitting.

Answer by: Customer Support on May 28, 2025, 11:24 AM

What kind of pressure can this fitting handle?

Question by: Troy P on Mar 19, 2026, 8:58 PM

Designed for use in high-pressure environments, this fitting should provide efficient fluid transfer and maintain system integrity.

Answer by: Customer Support on Mar 21, 2026, 6:56 AM

Got a machine running DIN tube fittings on one end but the port on the manifold is BSPP, this the kind of adapter that bridges that gap?

Question by: Dustin B on Apr 18, 2025, 8:48 AM

That's what this fitting handles. One side threads onto M16 x 1.5 DIN tube connections and the other side is G 3/8-19 BSPP, so it bridges those two thread standards in a straight-through configuration. Both sides are male, and the bulkhead design means it can pass through a panel or housing as part of the installation. Steel construction keeps it solid in industrial hydraulic environments where you need reliable fluid transfer without leaks at the joint.

Answer by: Customer Support on Apr 19, 2025, 8:54 PM
