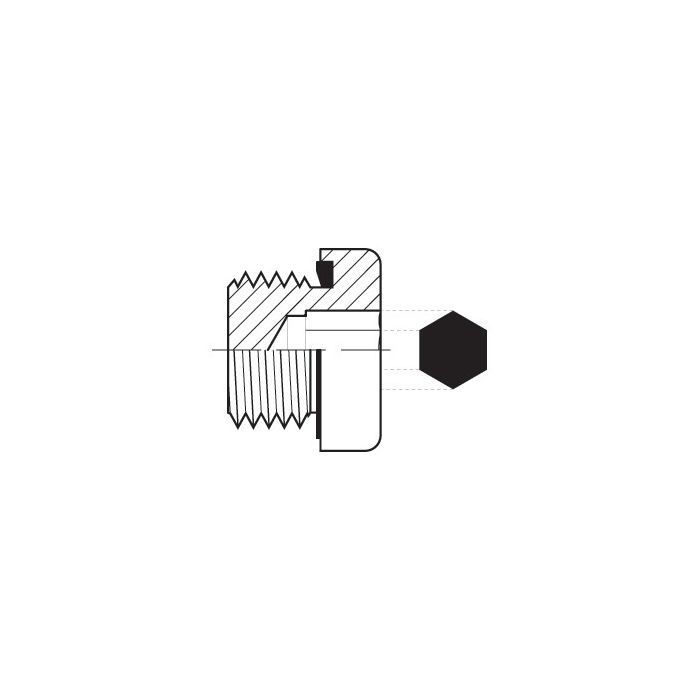

Metric Countersunk Sealed Plug

CH Width
32mm
L Length
21.1mm
Adaptall Material
Steel
Adaptall Shape
Plug
Side 1 Callout
M26 X 1.5
Side 1 Gender
M
Side 1 Size
26mm
Side 1 Type
Metric
Brand
Adaptall America
Brand
Adaptall
Pack Size
1.00
UOM
EA
Supplier Part Number
9029-26X1.5
Product Weight
0.20 lbs

Product Questions & Answers

got a port with M26 x 1.5 threads. is this plug the right one to block it off?
Question by: Ricky S on May 26, 2025, 9:55 AM
For an M26 x 1.5 metric threaded port, the fit matches since the plug has a male M26 x 1.5 thread. It is made for closing off unused metric threaded ports in hydraulic circuits.
Answer by: Customer Support on May 27, 2025, 12:37 PM
I'm just trying to make sure I get the right size... this is for a M26 x 1.5 port, right?
Question by: Hank G on Jul 17, 2025, 12:54 PM
that's correct. This countersunk plug has a male M26 x 1.5 metric thread, so it'll fit your M26 x 1.5 port as long as it's a standard metric thread.
Answer by: Customer Support on Jul 19, 2025, 6:42 AM
What's the thread size on this plug, and will it seat flush instead of sticking out past the port face?
Question by: Ralph C on Mar 7, 2026, 6:47 PM
Male M26 x 1.5 is the thread on this one. The countersunk profile is what makes it sit flush or even slightly recessed into the port face rather than protruding outward. That low-profile fit is really the whole point of the countersunk design, keeps things clean where clearance is tight or where a protruding plug would get in the way.
Answer by: Customer Support on Mar 9, 2026, 6:51 AM
