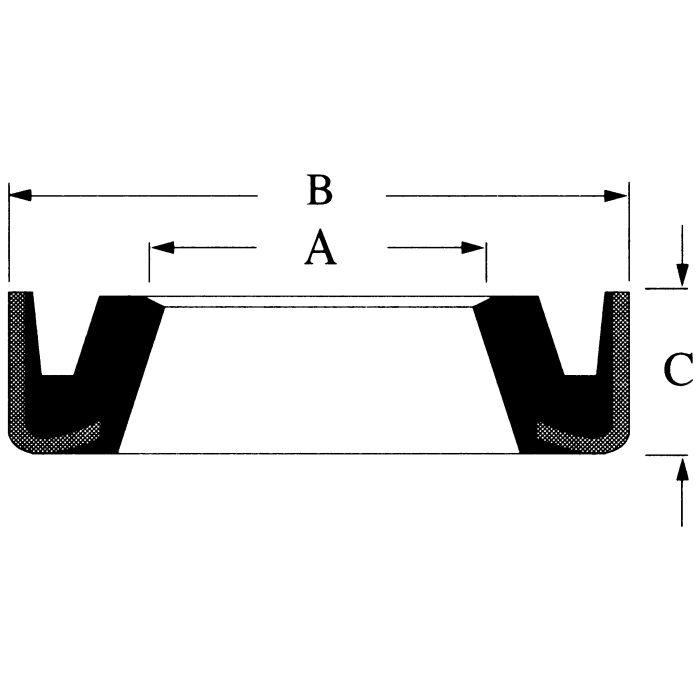

Metal-Clad Urethane Wiper Ring, 1.13 Inch Rod Diameter, 1.63 Inch Wiper OD, 0.31 Inch Height

C 0.31	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Rod Diameter A 1.13	Supplier Part Number MCU-1120-D	Product Weight 0.03 lbs	Alternate Part Numbers Alternate Part Number C1DE17

Product Questions & Answers 1

Product Questions & Answers

Got a cylinder rod that measures 1.125 inches across, this wiper ring gonna fit that up right?

Question by: Todd F on Nov 20, 2025, 10:05 AM

That's what it's built for. The rod diameter on this one is 1.125 inches, so you're matched up correctly. The outer diameter of the wiper itself runs 1.625 inches, and the height comes in at 0.3125 inches. As long as your housing is machined to accept those dimensions, you're good to go.

Answer by: Customer Support on Nov 22, 2025, 6:51 AM

Similar Products

Model Number	Rod Diameter A	Wiper O.D. B	C
MCU-0750-G	0.75	1.25	0.3125
MCU-0875-G	0.875	1.375	0.3125
MCU-1120-G	1.125	1.625	0.3125
MCU-1187-G	0.188	1.625	0.25
MCU-2006-G	2	2.688	0.375
MCU-2252-G	2.25	3	0.25
MCU-2503-G	2.5	3	0.1875
MCU-3506-G	3.5	4.125	0.3125
