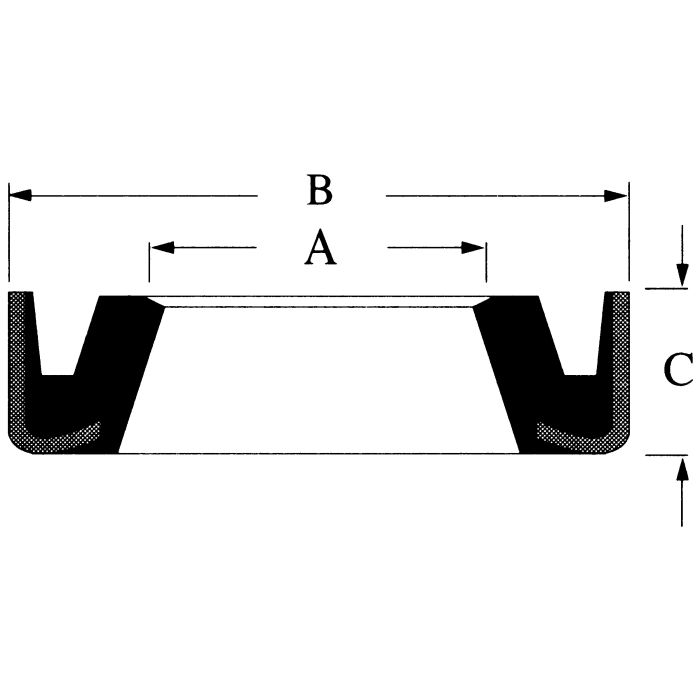

Metal-Clad Rubber Wiper Ring, 3.00 Inch Rod Diameter, 3.50 Inch Wiper OD, 0.25 Inch Height

C 0.25	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Rod Diameter A 3	Supplier Part Number MCN-3001	Product Weight 0.06 lbs	Alternate Part Numbers Alternate Part Number C1DE12

Product Questions & Answers 2

Product Questions & Answers

What size rod does this fit? Just want to make sure it's right before I order.

Question by: Warren M on Aug 22, 2025, 3:49 PM

It's made to fit a 3.00 inch diameter rod. The outer diameter of the wiper itself is 3.50 inches.

Answer by: Customer Support on Aug 24, 2025, 8:08 AM

got a 3 inch rod, is this the right wiper size or am i gonna be fighting it

Question by: Cody R on Aug 17, 2025, 8:02 PM

The key numbers are the 3.00 inch rod diameter and the 3.50 inch wiper outside diameter. If your cylinder uses a wiper sized for a 3.00 inch rod and a 3.50 inch OD, this ring matches those dimensions, with a 0.25 inch height.

Answer by: Customer Support on Aug 18, 2025, 8:26 PM

Similar Products

Model Number	Rod Diameter A	Wiper O.D. B	C
MCN-1001	1	1.25	0.125
MCN-1003	1	1.375	0.1875
MCN-1005	1	1.5	0.1875
MCN-1253	1.25	1.688	0.1875
MCN-1254	1.25	1.75	0.25
MCN-1375	1.375	1.75	0.1875
MCN-1502	1.5	1.875	0.25
MCN-1503	1.5	1.875	0.1875
MCN-1504	1.5	2	0.25
MCN-1753	1.75	2.125	0.1875
MCN-1754	1.75	2.25	0.25
MCN-1755	1.75	2.375	0.25
MCN-2001	2	2.375	0.1875
MCN-2002	2	2.625	0.25
MCN-2003	2	2.5	0.25
MCN-2253	2.25	2.75	0.25
MCN-2501	2.5	3	0.25
MCN-3001	3	3.5	0.25
