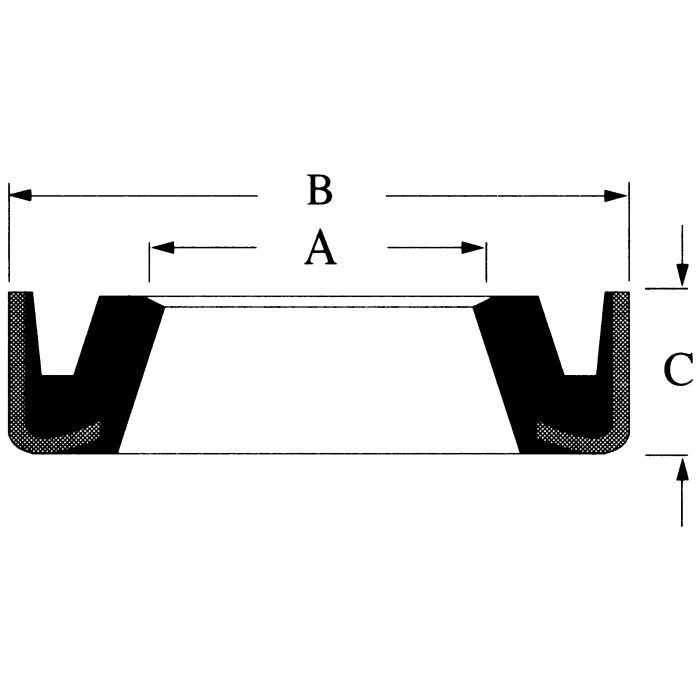

Metal-Clad Rubber Wiper Ring, 2.50 Inch Rod Diameter, 3.00 Inch Wiper OD, 0.25 Inch Height

C 0.25	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Rod Diameter A 2.50	Supplier Part Number MCN-2501	Product Weight 0.06 lbs	Alternate Part Numbers Alternate Part Number C1DD99, Alternate Part Number MI-00943100, Alternate Part Number MINO-00407X15136

Product Questions & Answers 2

Product Questions & Answers

got a cylinder with a 2.50 rod, is this wiper the right size or am i gonna be fighting it?

Question by: Johnny D on Jun 15, 2025, 5:24 PM

Fit comes down to the rod size and the wiper OD. This metal-clad rubber wiper ring is made for a 2.50 inch rod diameter, with a 3.00 inch wiper OD and 0.25 inch height, so it matches those dimensions.

Answer by: Customer Support on Jun 17, 2025, 6:51 AM

Got a cylinder rod measuring 2.50 inches across, this wiper ring gonna seat right in a standard 3.00 inch bore housing?

Question by: Shane G on Jan 15, 2026, 4:15 PM

Yeah, the dimensions line up for exactly that setup. The rod diameter is 2.50 inches, the OD comes in at 3.00 inches, and the height is 0.25 inches. The metal casing is what holds everything snug in the housing bore, so as long as your housing is machined for those specs, it should drop in clean and stay put.

Answer by: Customer Support on Jan 17, 2026, 6:01 AM

Similar Products

Model Number	Rod Diameter A	Wiper O.D. B	C
MCN-1001	1	1.25	0.125
MCN-1003	1	1.375	0.1875
MCN-1005	1	1.5	0.1875
MCN-1253	1.25	1.688	0.1875
MCN-1254	1.25	1.75	0.25
MCN-1375	1.375	1.75	0.1875
MCN-1502	1.5	1.875	0.25
MCN-1503	1.5	1.875	0.1875
MCN-1504	1.5	2	0.25
MCN-1753	1.75	2.125	0.1875
MCN-1754	1.75	2.25	0.25
MCN-1755	1.75	2.375	0.25
MCN-2001	2	2.375	0.1875
MCN-2002	2	2.625	0.25
MCN-2003	2	2.5	0.25
MCN-2253	2.25	2.75	0.25
MCN-2501	2.5	3	0.25
MCN-3001	3	3.5	0.25
