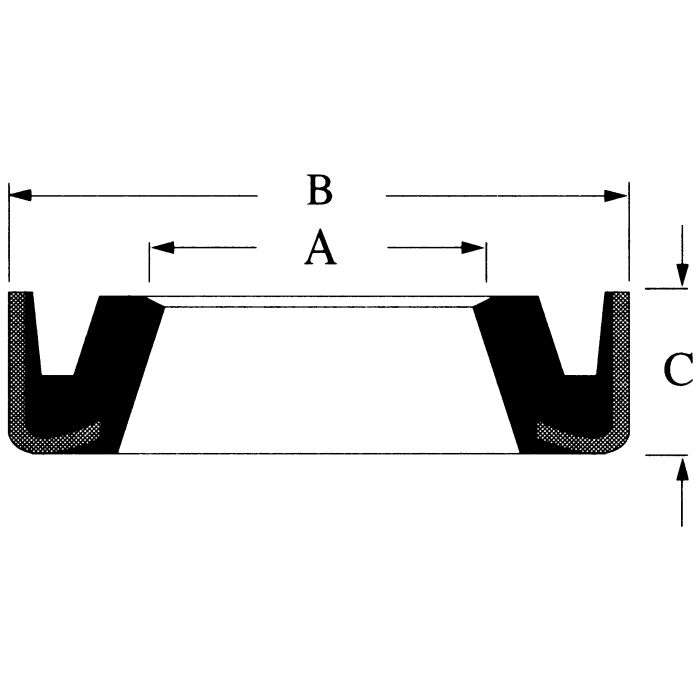

Metal-Clad Rubber Wiper Ring, 2.25 Inch Rod Diameter, 2.75 Inch Wiper OD, 0.25 Inch Height

C 0.25	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Rod Diameter A 2.25	Supplier Part Number MCN-2253	Product Weight 0.04 lbs	Alternate Part Numbers Alternate Part Number C1DD97, Alternate Part Number MI-00943076, Alternate Part Number MINO-00407X15132

Product Questions & Answers 1

Product Questions & Answers

Got a cylinder with a 2.25-inch rod that needs a new wiper, this one gonna drop right in without any machining or fitup work?

Question by: Brent J on Jan 6, 2026, 8:23 AM

For any cylinder already built around a 2.25-inch rod diameter with a groove sized for a 2.75-inch OD and 0.25-inch height, this is a straight swap. The metal outer casing holds its shape during installation, so you're not fighting the part to get it seated right. No modification should be needed as long as your groove dimensions match.

Answer by: Customer Support on Jan 8, 2026, 6:11 AM

Similar Products

Model Number	Rod Diameter A	Wiper O.D. B	C
MCN-1001	1	1.25	0.125
MCN-1003	1	1.375	0.1875
MCN-1005	1	1.5	0.1875
MCN-1253	1.25	1.688	0.1875
MCN-1254	1.25	1.75	0.25
MCN-1375	1.375	1.75	0.1875
MCN-1502	1.5	1.875	0.25
MCN-1503	1.5	1.875	0.1875
MCN-1504	1.5	2	0.25
MCN-1753	1.75	2.125	0.1875
MCN-1754	1.75	2.25	0.25
MCN-1755	1.75	2.375	0.25
MCN-2001	2	2.375	0.1875
MCN-2002	2	2.625	0.25
MCN-2003	2	2.5	0.25
MCN-2253	2.25	2.75	0.25
MCN-2501	2.5	3	0.25
MCN-3001	3	3.5	0.25
