Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.50 Inch Wiper OD, 0.25 Inch Height

C 0.25	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Rod Diameter A 2	Supplier Part Number MCN-2003	Product Weight 0.04 lbs	Alternate Part Numbers Alternate Part Number C1DD96, Alternate Part Number MI-00943065, Alternate Part Number MINO-00407X15130

Product Questions & Answers

What size rod does this wiper ring fit? Just wanna make sure it's the right one before I order.

Question by: Bobby W on Dec 23, 2025, 1:50 PM

It's made to fit a rod with a 2.00 inch diameter. The outside diameter of the wiper itself is 2.50 inches, and it's 0.25 inches tall.

Answer by: Customer Support on Dec 25, 2025, 6:09 AM

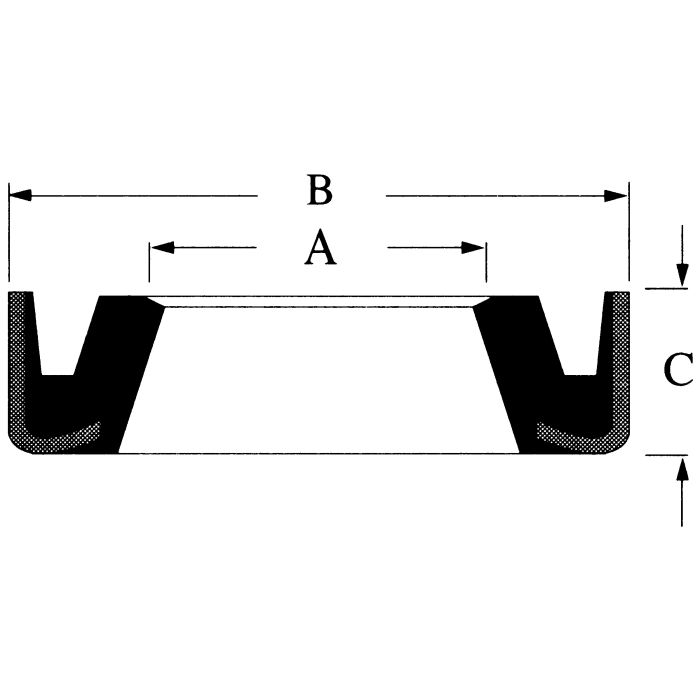

Model Number	Rod Diameter A	Wiper O.D. B	C
MCN-1001	1	1.25	0.125
MCN-1003	1	1.375	0.1875
MCN-1005	1	1.5	0.1875
MCN-1253	1.25	1.688	0.1875
MCN-1254	1.25	1.75	0.25
MCN-1375	1.375	1.75	0.1875
MCN-1502	1.5	1.875	0.25
MCN-1503	1.5	1.875	0.1875
MCN-1504	1.5	2	0.25
MCN-1753	1.75	2.125	0.1875
MCN-1754	1.75	2.25	0.25
MCN-1755	1.75	2.375	0.25
MCN-2001	2	2.375	0.1875
MCN-2002	2	2.625	0.25
MCN-2003	2	2.5	0.25
MCN-2253	2.25	2.75	0.25
MCN-2501	2.5	3	0.25
MCN-3001	3	3.5	0.25
