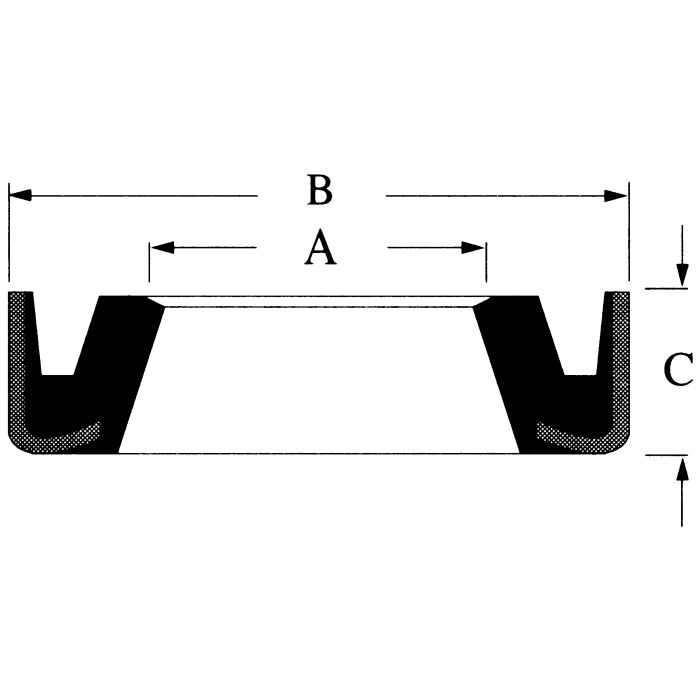

Metal-Clad Rubber Wiper Ring, 2.00 Inch Rod Diameter, 2.63 Inch Wiper OD, 0.25 Inch Height

C 0.25	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Rod Diameter A 2	Supplier Part Number MCN-2002	Product Weight 0.05 lbs	Alternate Part Numbers Alternate Part Number C1DD95, Alternate Part Number MI-00943053, Alternate Part Number MINO-00407X15128

Product Questions & Answers 3

Product Questions & Answers

got a 2 inch rod, is this wiper ring the right size or am i missin somethin

Question by: Larry C on Aug 13, 2025, 9:09 AM

The key callouts are a 2.00 inch rod diameter, a 2.63 inch wiper OD (2.625), and a 0.25 inch height, so it matches a 2 inch rod application with that outside diameter and height.

Answer by: Customer Support on Aug 14, 2025, 6:22 PM

So, this is just the wiper part, right? Not the whole cylinder assembly?

Question by: Rex T on Dec 30, 2025, 7:26 PM

That's correct, this is just the metal-clad rubber wiper ring itself. It's designed to keep dirt and debris from getting into your hydraulic cylinders.

Answer by: Customer Support on Jan 1, 2026, 7:16 AM

Got a cylinder with a 2-inch rod that needs a new wiper, this the right size to drop in?

Question by: Gary B on Dec 1, 2025, 7:36 PM

For a 2.00 inch rod diameter, yeah, this one lines up. The wiper OD comes in at 2.625 inches and the height is 0.25 inches, so those are the numbers you want to match against your housing bore and groove depth before ordering. The rod diameter is the critical fit dimension here, and this one is spec'd right at 2.00 inches.

Answer by: Customer Support on Dec 3, 2025, 1:54 PM

Similar Products

Model Number	Rod Diameter A	Wiper O.D. B	C
MCN-1001	1	1.25	0.125
MCN-1003	1	1.375	0.1875
MCN-1005	1	1.5	0.1875
MCN-1253	1.25	1.688	0.1875
MCN-1254	1.25	1.75	0.25
MCN-1375	1.375	1.75	0.1875
MCN-1502	1.5	1.875	0.25
MCN-1503	1.5	1.875	0.1875
MCN-1504	1.5	2	0.25
MCN-1753	1.75	2.125	0.1875
MCN-1754	1.75	2.25	0.25
MCN-1755	1.75	2.375	0.25
MCN-2001	2	2.375	0.1875
MCN-2002	2	2.625	0.25
MCN-2003	2	2.5	0.25
MCN-2253	2.25	2.75	0.25
MCN-2501	2.5	3	0.25
MCN-3001	3	3.5	0.25
