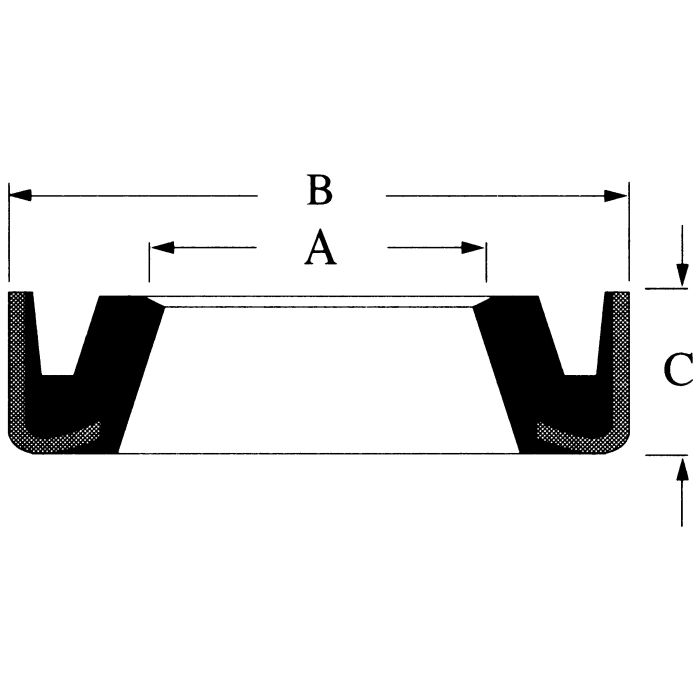

Metal-Clad Rubber Wiper Ring, 1.75 Inch Rod Diameter, 2.38 Inch Wiper OD, 0.25 Inch Height

C 0.25	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Rod Diameter A 1.75	Supplier Part Number MCN-1755	Product Weight 0.05 lbs	Alternate Part Numbers Alternate Part Number C1DD92

Product Questions & Answers 2

Product Questions & Answers

got a cylinder with a 1.75 rod, is this wiper ring the right size or am i gonna be fightin it

Question by: Merle M on Aug 22, 2025, 3:45 PM

It is sized for a 1.75 inch rod diameter with a 2.375 inch wiper outside diameter and a 0.25 inch height, so it matches a 1.75 rod application.

Answer by: Customer Support on Aug 24, 2025, 9:27 AM

Got a cylinder rod that measures 1.75 inches across, this wiper ring gonna fit right without any hassle?

Question by: Danny W on May 28, 2025, 8:26 PM

For a 1.75-inch rod diameter, yeah, this one fits. The wiper OD comes in at 2.375 inches and the height is 0.25 inches, so the dimensions are fixed and specific. As long as your housing bore is machined to accept those outer dimensions, you should be dropping it right in without any modification needed.

Answer by: Customer Support on May 30, 2025, 6:20 AM

Similar Products

Model Number	Rod Diameter A	Wiper O.D. B	C
MCN-1001	1	1.25	0.125
MCN-1003	1	1.375	0.1875
MCN-1005	1	1.5	0.1875
MCN-1253	1.25	1.688	0.1875
MCN-1254	1.25	1.75	0.25
MCN-1375	1.375	1.75	0.1875
MCN-1502	1.5	1.875	0.25
MCN-1503	1.5	1.875	0.1875
MCN-1504	1.5	2	0.25
MCN-1753	1.75	2.125	0.1875
MCN-1754	1.75	2.25	0.25
MCN-1755	1.75	2.375	0.25
MCN-2001	2	2.375	0.1875
MCN-2002	2	2.625	0.25
MCN-2003	2	2.5	0.25
MCN-2253	2.25	2.75	0.25
MCN-2501	2.5	3	0.25
MCN-3001	3	3.5	0.25
