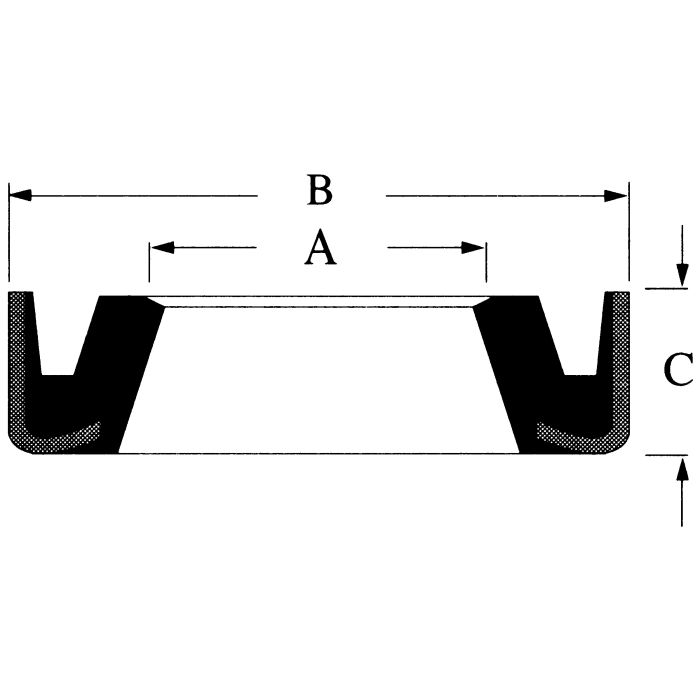

Metal-Clad Rubber Wiper Ring, 1.75 Inch Rod Diameter, 2.25 Inch Wiper OD, 0.25 Inch Height

C 0.25	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Rod Diameter A 1.75	Supplier Part Number MCN-1754	Product Weight 0.03 lbs	Alternate Part Numbers Alternate Part Number C1DD91, Alternate Part Number MI-00943011, Alternate Part Number MINO-00407X15120

Product Questions & Answers 3

Product Questions & Answers

Is this wiper ring gonna fit my cylinder rod, which is 1.75 inches?

Question by: Pete P on Feb 20, 2026, 11:02 AM

This metal-clad rubber wiper ring is made to fit a 1.75-inch diameter rod, so you should be good to go.

Answer by: Customer Support on Feb 22, 2026, 6:23 AM

Does this wiper ring hold up in cold weather? Got equipment sittin' outside through some pretty rough winters and need something that ain't gonna get stiff and crack on me.

Question by: Cindy T on Jun 6, 2025, 7:37 PM

Cold temps are not a problem for this one. It's rated down to -40°F, so even the worst winter conditions most folks run into won't cause it to stiffen up or lose its wipe. The metal-clad rubber construction keeps it functional across a wide swing of temperatures, topping out at 240°F on the high end too.

Answer by: Customer Support on Jun 8, 2025, 2:58 PM

got a cylinder with a 1.75 rod, is this wiper ring the right size or am i missing something

Question by: Steve F on Dec 17, 2025, 12:51 PM

The key numbers are a 1.75 inch rod diameter, a 2.25 inch wiper outside diameter, and a 0.25 inch height. If your gland is set up for those dimensions, this metal-clad rubber wiper ring will be the correct match.

Answer by: Customer Support on Dec 18, 2025, 1:10 PM

Similar Products

Model Number	Rod Diameter A	Wiper O.D. B	C
MCN-1001	1	1.25	0.125
MCN-1003	1	1.375	0.1875
MCN-1005	1	1.5	0.1875
MCN-1253	1.25	1.688	0.1875
MCN-1254	1.25	1.75	0.25
MCN-1375	1.375	1.75	0.1875
MCN-1502	1.5	1.875	0.25
MCN-1503	1.5	1.875	0.1875
MCN-1504	1.5	2	0.25
MCN-1753	1.75	2.125	0.1875
MCN-1754	1.75	2.25	0.25
MCN-1755	1.75	2.375	0.25
MCN-2001	2	2.375	0.1875
MCN-2002	2	2.625	0.25
MCN-2003	2	2.5	0.25
MCN-2253	2.25	2.75	0.25
MCN-2501	2.5	3	0.25
MCN-3001	3	3.5	0.25
