Metal-Clad Rubber Wiper Ring, 1.75 Inch Rod Diameter, 2.13 Inch Wiper OD, 0.19 Inch Height

C 0.19	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Rod Diameter A 1.75	Supplier Part Number MCN-1753	Product Weight 0.03 lbs	Alternate Part Numbers Alternate Part Number C1DD90

Product Questions & Answers

How high is this wiper ring, like how much space does it take up?

Question by: Rhonda G on Dec 16, 2025, 7:02 AM

The height of this metal-clad rubber wiper ring is 0.19 inches.

Answer by: Customer Support on Dec 17, 2025, 5:09 PM

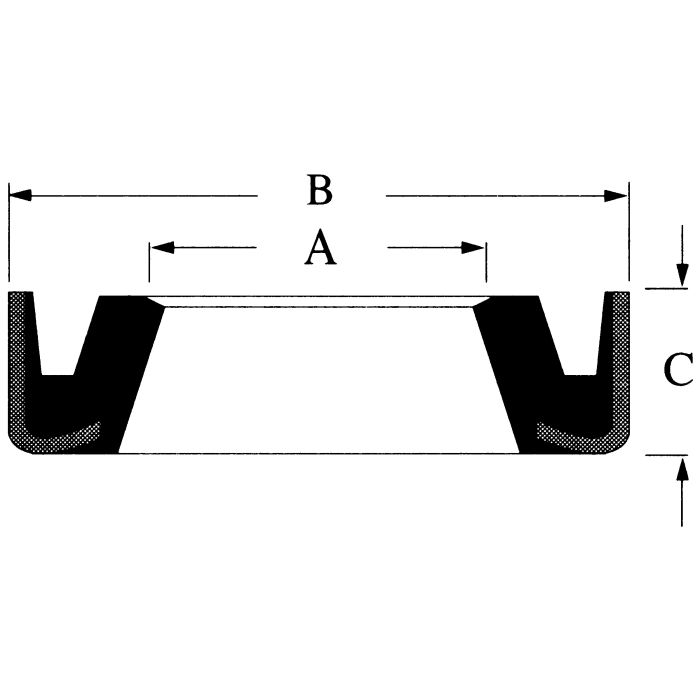

Model Number	Rod Diameter A	Wiper O.D. B	C
MCN-1001	1	1.25	0.125
MCN-1003	1	1.375	0.1875
MCN-1005	1	1.5	0.1875
MCN-1253	1.25	1.688	0.1875
MCN-1254	1.25	1.75	0.25
MCN-1375	1.375	1.75	0.1875
MCN-1502	1.5	1.875	0.25
MCN-1503	1.5	1.875	0.1875
MCN-1504	1.5	2	0.25
MCN-1753	1.75	2.125	0.1875
MCN-1754	1.75	2.25	0.25
MCN-1755	1.75	2.375	0.25
MCN-2001	2	2.375	0.1875
MCN-2002	2	2.625	0.25
MCN-2003	2	2.5	0.25
MCN-2253	2.25	2.75	0.25
MCN-2501	2.5	3	0.25
MCN-3001	3	3.5	0.25
